MARINCO CLAMP LOCK PLUG 15A 125V CL5266
Features:
Clamp-Lockâ„¢ system from Marinco. It's a revolutionary way to terminate electrical devices for
faster assembly and to ensure a reliable, maintenance-free connection. And like all Marinco wiring devices, Clamp-Lock
products are designed and produced to meet or exceed tough hospital-grade UL standards.

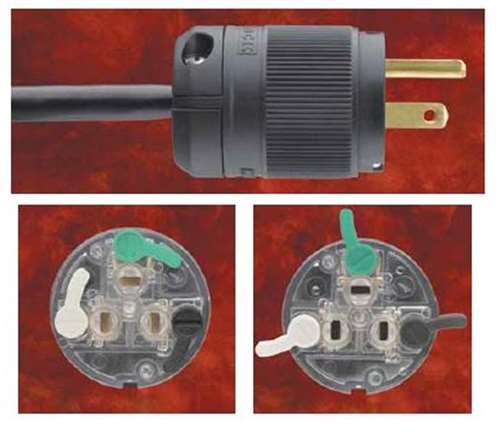

The patented Marinco design utilizes color-coded cam levers to open and close windows that accept the conductors. There
is no need to insert a tool into the device and re-torquing is not required because the device provides consistent clamping force.
Assemblers open the levers, insert the stripped conductors and close the levers. The connection is complete.
Designed for Durability
Hospital Grade Clamp-Lock devices meet or exceed Hospital Grade
U.L. tests. Devices conform to U.L. Standards for hospital equipment,
#498 and #544, including:
Terminal Identification
Lever colors identify hot (black), neutral (white), ground (green)
Construction
Housing and Body: Nylon - Tough and resistant to a wide range of
chemicals. U.L. recognized for 125°C continuous use. U.L. 94V-2
Flammability Index. Beveled design to resist snagging.
Blades and Contacts: Solid brass for excellent conductivity
Terminal Cover: Clear polycarbonate - terminals visible
Assembly Screws: Two U-drive combination slot/crosshead
1WH = White; BL = Black; TR = Transparent. 2OEM pack devices are 50 pieces per pack.
Agency Listings
U.L. Listed File E57672
C.S.A. Certified File LR81290
Mechanical
Accommodates 18/3 SJ through 10/3 S cable
Cord Accommodation (with inserts): .300'' - .430''
Cord Accommodation (inserts removed): >.430'' - .655''
Electrical
Dielectric Withstand Voltage: >3,000V
Heat Rise: Maximum 30°C after 100 cycles at 150% of rated current
Current Interrupting: Yes
• Abrupt plug removal
(parallel to wall) test
• Ground contact
• Temperature test
• Ground resistance test
• Grounding contact
• overstress test
• Assembly security test
• Mold stress relief test
• Crush test
• Cord grip strain relief tests
• Static cord pull test
• Rotary cord pull test
• Impact resistance test
• Mechanical drop
