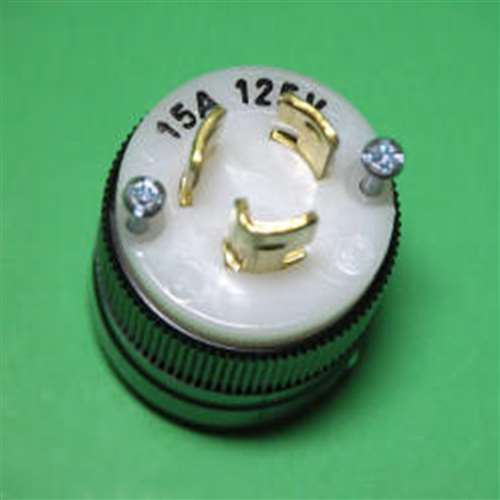

Marinco 4720 AC Locking Plug 125V 15A

15 Amp/125 Volt Locking Plug

Product Features:

- Redundant color coding on all terminals
- Uses Exclusive Perma-Lock Terminal
- Rear housing key fits into front portion for ease of assembly
- Ribbed housing allows for secure gripping
- Thick walled nylon housing resists abuse, corrosion and most chemicals

L5-15R, 15 Amp/250 Volt, Locking, Plug

Item: Plug, locking
Rating: 15 amperes, 125 volts, NEMA Configuration L5-15P
Materials: All plastic parts are nylon with CTI greater than 600 volts. Blades are solid brass.
Terminals: Tempered brass, lug style, Perma-Lock™ design. Terminals visible through clear end cap.
Terminal Identification: Terminal screws are color coded.
Ground wire entrance hot stamped green and marked "GR."
Line wire entrance hot stamped black.
Cord Clamp: Internal. Accommodates 18/3 SJ through 12/3 S cable.
Overall Design: Two assembly screws, U-drive style.
All screws are combination slot/cross head.
Beveled housing. Dust seal at cord entry.
Cable strip length gauge molded into plug body.
Listings: UL listed, File E57672
CSA certified, File LR81290
