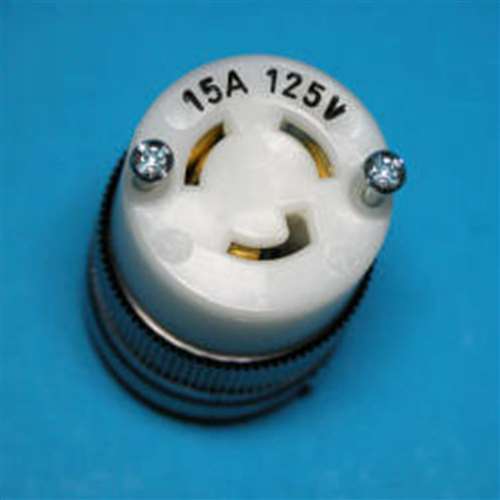

Marinco 4729 AC Locking Receptacle 125V 15A

15 Amp, 125 Volt, Locking Connector

Product Features:

- U.L. Listed and C.S.A. Certified for make or break under load
- Rear housing is rounded so it won't get caught on stairs, equipment, etc
- Uses Exclusive Perma-Lock Terminal
- "Drive-rivet" style combo head assembly screws for fast assembly
- Devices are clearly marked with amperage, voltage, rating, and NEMA configuration

Item: Connector, locking
Rating: 15 amperes, 125 volts, NEMA Configuration L5-15R
Materials: All plastic parts are nylon with CTI greater than 600 volts. Contacts are solid brass.
Contacts: One piece, .040" thick brass.
Terminals: Tempered brass, lug style, Perma-Lock™ design.Terminals visible through clear end cap.
Terminal Identification: Terminal screws are color coded.
Ground wire entrance hot stamped green and marked "GR."
Line wire entrance hot stamped black.
Cord Clamp: Internal.
Accommodates 18/3 SJ through 12/3 S cable.
Overall Design: Two assembly screws, U-drive style.
Dust seal at cord entry.
Beveled housing.
Cable strip length gauge molded into connector body.
Listings: UL listed, File E57672
CSA certified, File LR81290

L5-15R, 15 Amp, 125 Volt, Locking, Connector
