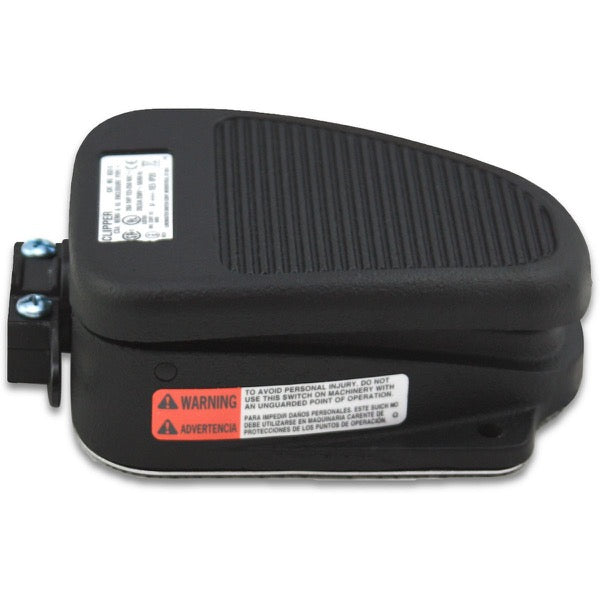

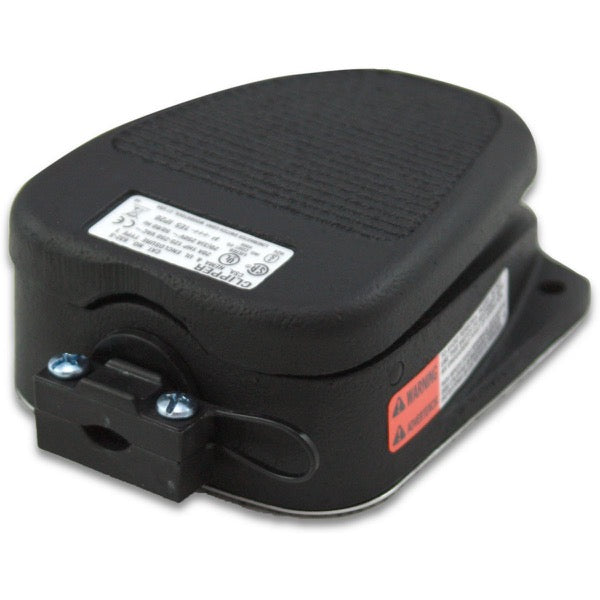

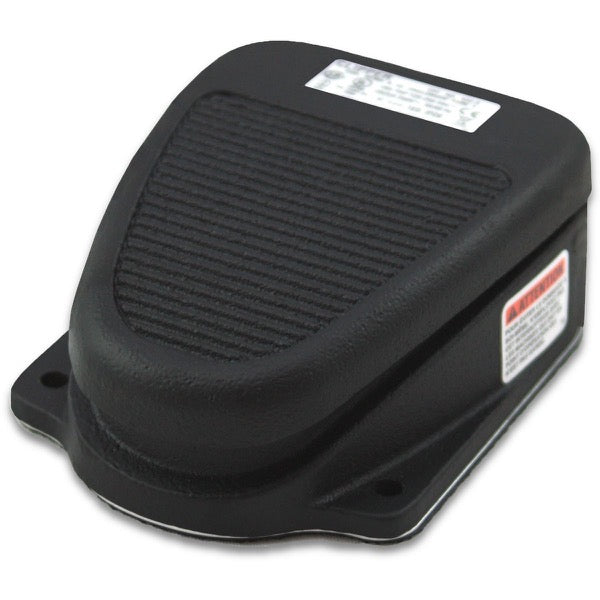

Linemaster 632S Clipper Footswitch Single Pedal Cast Iron Housing , Momentary Switch 20AMP/120VAC
Linemaster 632S Clipper Footswitch Single Pedal Cast Iron Housing , Momentary Switch 20AMP/120VAC
SKU: B&E Part Number: 632S
B&E Calgary: 4
B&E Saskatoon: 2
Status: In Stock
Couldn't load pickup availability

Collapsible content
Product Description
EN 60529 Degree of Protection IP20 - Splash Resistant
Brand name(s) : Linemaster
Materials of Construction
- Constructed of Cast Iron for long life
- Non-skid base pad
- Adjustable Strain relief connector
- Durable black finish Features & Benefits
- Proven Reliability
- 2 holes provided for rigid mounting to floor or equipment
Technical specifications
Action : Momentary, Single stage
Enclosure Rating : NEMA Type 1
Circuitry : SPDT (Form "C")
Electrical Ratings : 20A/125 VAC , 20A/250 VAC, 1 HP 125 VAC, 1 HP 250 VAC
Switch connection style : Screw terminal
Housing material : Cast iron housing
Housing color : Black
Agency approval (s) : ROHS, CSA, UL, CE
