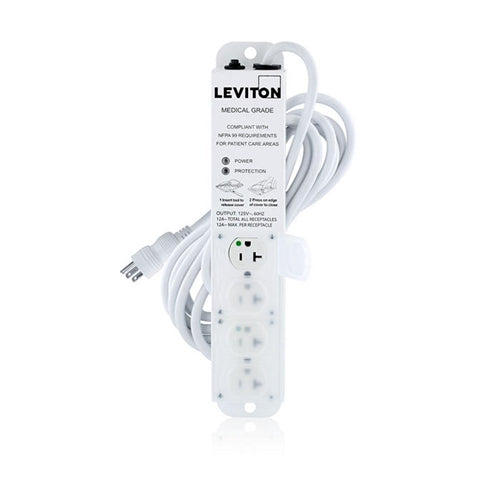

Leviton 5304M-2S5 Medical Grade Power Strip 4-OUTLETS, with Surge, NEMA 5-20P/5-20R, 20A (16A Max Continuous), 15'cord

Leviton 5304M-2S5 Medical Grade Power Strip 4-OUTLETS, with Surge, NEMA 5-20P/5-20R, 20A (16A Max Continuous), 15'cord

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available online by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

B&E Part Number:  5304M-2S5

$304.24 CAD /Each
/Each $304.24 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

20 Amp (16 Amp Max Continuous Load) 125VAC, Medical Grade Surge Protective Power Strip With 4 NEMA 5-20R Outlets With Locking Covers, 15-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, UL 60950-1, and UL 1449

Operable in Isolated Power Applications

According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."

Technical Info


Electrical Specifications
Amperage : 20 A
Cord Length : 15 Foot
Frequency : 60Hz
Grade : Medical
Number of Receptacles : 4
Surge Protection : Yes
Surge Technology : MOV
Voltage : 125 VAC

Material Specifications
Enclosure : Powder Coated Steel
Line Cord : #12/3 SJT
Outlet Covers : Polypropylene

Performance Data
Inform Technology : No
Joules Rating : 644J
MCOV : 150V
Maximum Leakage Current : <100µA
Maximum Surge Current, Per Mode (L-N) : 27kA
Noise Filtering : -6dB to -29dB (100kHz to 100MHz)
Voltage Protection Rating (VPR) L-N, L-G, N-G : 600V, 600V, 500V

Environmental Specifications
Operating Temperature : 0°C to 40°C
Storage Temperature : -10°C to +50°C

Mechanical Specifications
HG Outlet Configuration : NEMA 5-20R
HG Plug Configuration : NEMA 5-20P

Standards and Certifications
ANSI/IEEE : Category A
NFPA : NFPA 99 2012 ed
UL 1363A and CSA C22.2 : No. 21
UL 1449 3rd Ed and CSA C22.2 : No. 8
UL 60601-1 and CSA C22.2 : No.60601-1
UL 60950-1 and CSA C22.2 : No. 60950-1

Warranty
Warranty : 5-Year Limited
