Leviton

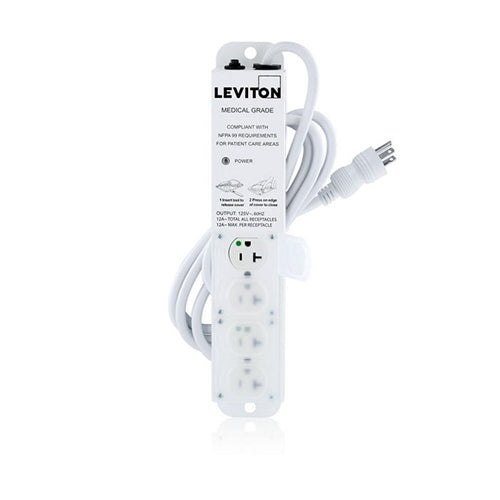

Leviton 5304M-2N7 Medical Grade Power Strip 4-OUTLETS, No Surge, NEMA 5-20P/5-20R, 20A (16A Max Continuous), 7'cord

Leviton 5304M-2N7 Medical Grade Power Strip 4-OUTLETS, No Surge, NEMA 5-20P/5-20R, 20A (16A Max Continuous), 7'cord


This Item is Available by SPECIAL ORDER

SKU: B&E Part Number:  5304M-2N7

Regular price $238.76 CAD /Each
Regular price /Each Sale price $238.76 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
Quantity
View full details

Collapsible content

Product Description

20 Amp (16 Amp Max Continuous Load) 125VAC, Medical Grade Power Strip With 4 NEMA 5-20R Outlets With Locking Covers, 7-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, and UL 60950-1.

Operable in Isolated Power Applications

According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."

Technical Info


Electrical Specifications
Amperage : 20 A
Cord Length : 7 Foot
Frequency : 60Hz
Grade : Medical
Number of Receptacles : 4
Voltage : 125 VAC

Material Specifications
Enclosure : Powder Coated Steel
Line Cord : #12/3 SJT
Outlet Covers : Polypropylene

Performance Data
Maximum Leakage Current : <100µA

Environmental Specifications
Operating Temperature : 0°C to 40°C
Storage Temperature : -10°C to +50°C

Mechanical Specifications
HG Outlet Configuration : NEMA 5-20R
HG Plug Configuration : NEMA 5-20P

Standards and Certifications
NFPA : NFPA 99 2012 ed
UL 1363A and CSA C22.2 : No. 21
UL 60601-1 and CSA C22.2 : No.60601-1
UL 60950-1 and CSA C22.2 : No. 60950-1

Warranty
Warranty : 5-Year Limited
