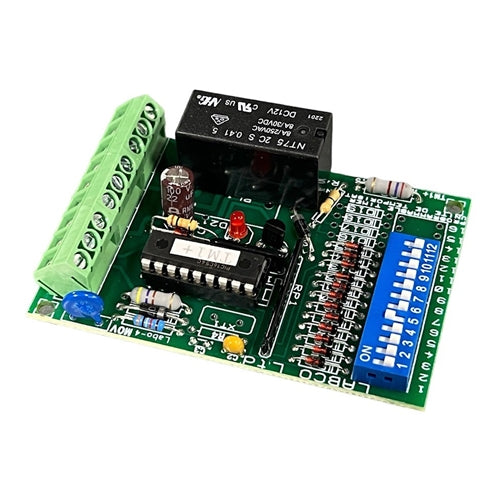

Labco TM1PLUS Universal Program Timer PCB 6 Modes 12/24VDC

6 mode universal timer 12vdc or 24vdc PCB timer
Brand name(s) : Labco Ltd

Features
6 modes of operation : Delay on operate , Delay on release, Latching #1 , Latching #2, Pulsing #1, Pulsing #2
Adjustable from 1 second to 4 hours with programmable dip switches, LED status indicates when timer function is active
Microprocessor based / controlled clock for accuracy of 2%
Operates on a power supply of 12vdc or 24vdc
Adhesive foam tape
SPDT relay output : 5 amp 24vdc contacts
