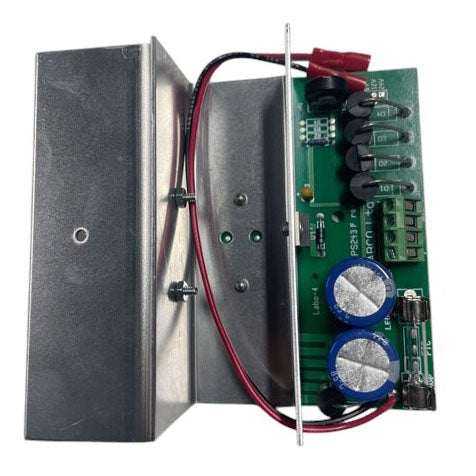

Labco PS244.5F DC Power Supply Board 4.5A 6V/9V/12V/13.8/18VDC /24VDC/28VDC Adjustable * AC Transformer Required *

Regulated output power supply with adjustable output from 2 to 30VDC. Features built-in battery charging and automatic switchover to a standby battery in the event of an AC power failure.

• Regulated output power supply
• Fully adjustable from 2 to 30VDC
• Maximum output: 4.5A at 70°F in free air
• Regulation: 98%
• Fuse protected
• Built-in GEL CELL battery charger
• Automatic switchover to standby battery in case of AC power failure
• Includes 10" (254mm) battery leads with quick connectors
• Supplied with adhesive mounting tape for easy installation

Ripple (Approx.):

• Minimum load: 0.002Vrms
• Half load: 0.003Vrms
• Maximum load: 0.006Vrms

Dimensions:

• Length: 3.19" (81mm)
• Width: 2.50" (64mm)
• Height: 1.38" (35mm)
