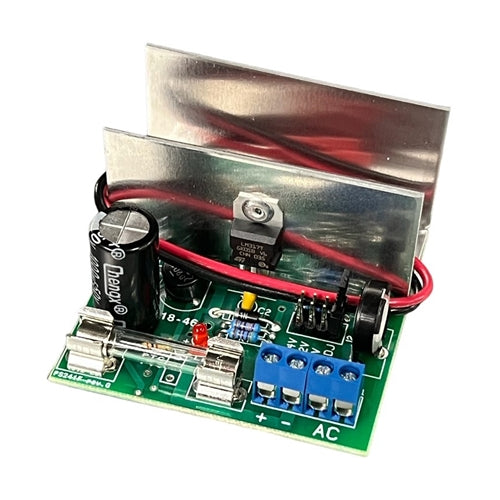

Labco DC Power Supply Board 6V/12/24V 1A LB-PS241F 2-24V Adjustable , ** AC Transformer Required **

Regulated output power supply
Brand name(s) : Labco Ltd

3 preset voltages : 6,12 and 24VDC (an adjustable mode is also available with a jumper setting)
Full adjustment from 2 to 24VDC if required
Maximum 1 amp (Output at 70 deg. F and free air)
Regulation : 97.5%

Features
- Fuse protected
- Built-in gel cell battery charger
- Automatic switch over to standby battery in case of AC power failure
- Battery leads (10",254mm) complete with quick connectors
- Ease of installation with supplied adhesive mounting tape

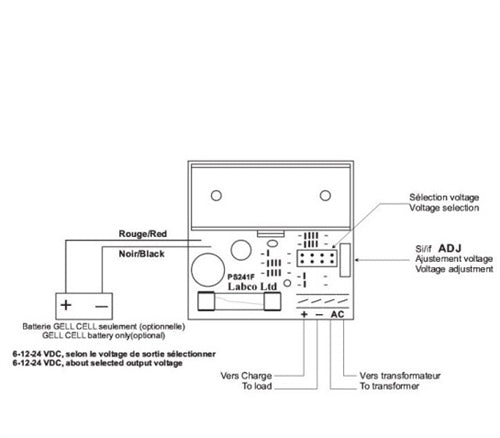

Transformer required (jumper on PCB assembly sets voltage)
6vdc = 6 - 9vac 20va Gel cell battery voltage = 6vdc**
9vdc = 9 - 12vac 20va
12vdc = 12 - 14vac 30va Gel cell battery voltage = 12vdc**
13.8vdc = 14 - 16vac 30va Gel cell battery voltage = 12vdc**
18vdc = 18 - 20vac 30va
24vdc = 24 - 24vac 40va Gel cell battery voltage = 24vdc**

Adjustment jumper allows voltage to be variable output
** Built in gel cell battery charging circuit
