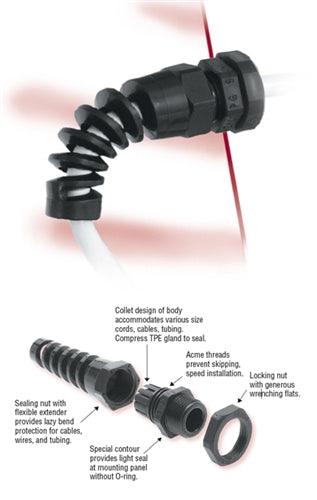

Heyco Strain Relief w/Pigtail 3240 (PG9)

Heyco® original series-35 liquid tight cordgrips

Metric thread straight-thru cable strain relief w/pigtail

Part# : 3240
Alternate part(s)# : FLEX LTF9 , PG9
Cable diameter (minimum / maximum) : .181"/4.6mm - .312"/7.9mm

Features
- Flexible Pigtail™ extender prevents sharp bends and extends cable life.
- IP 68 rated.
- Widest range of approved cable diameters.
- For use in clearance or threaded holes.
- Acme threads on body prevent skipping and speed installation.
- PG hub threads are steel conduit threads per DIN 40430.
- All nylon construction with TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
- Nylon Locknuts INCLUDED.

Specifications
Material : Nylon 6/6 w/TPE Sealing Gland
Certifications
UL logo Listed under Underwriters' Laboratories File E51579
UL logo Recognized under the Component Program of Underwriters' Laboratories File E51579
CSA Certified by Canadian Standards Association File 93876C
Flammability Rating : 94V-2
Temperature Rating : Static -40°F (-40°C) to 239°F (115°C) / Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating : IP 68 (70 PSI, 5 BAR)
