Heyco Strain Relief NPT1/2" (0.17"-0.45" Cable) 3231

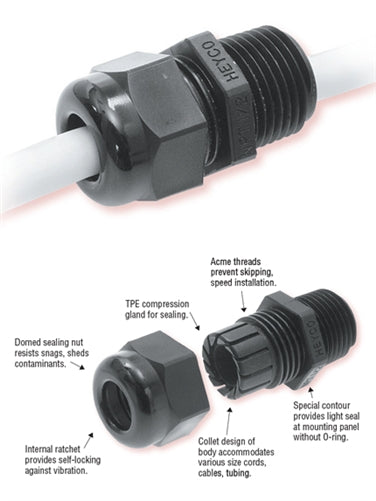

Heyco® Original Series-35 liquid tight cordgrip

NPT/Imperial thread straight-thru cord strain relief

Part# : 3231
Alternate part(s)# : LTF1/2, NPT1/2
Cable diameter (minimum / maximum) : .170"/4.3mm - .450"/11.4mm

Features
- IP 68 rated.
- Widest range of approved cable diameters.
- Acme threads on body prevent skipping and speed installation.
- For use in clearance or threaded holes.
- All nylon construction with TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)-
- Locknut not included. For nylon locknut see part# NLN1/2NPTBLK

Specifications
Material : Nylon 6/6 w/TPE Sealing Gland
Certifications
UL logo Listed under Underwriters' Laboratories File E51579
UL logo Recognized under the Component Program of Underwriters' Laboratories File E51579
CSA Certified by Canadian Standards Association File 93876C
Flammability Rating : 94V-2
Temperature Rating : -22°F (-30°C) to 212°F (100°C)
IP Rating : IP 68 (70 PSI, 5 BAR)
