Heyco Nylon Mounting Bracket for 8452 1029* *CLEARANCE* 3/4" Diameter

Heyco-Flexâ„¢ Mounting Bracket

Fits conduit/tubing size : 3/4"

PART NO. : 1029 (black)

Description : HFB 3/4

Features

- For mounting Heyco-Flex I Conduit, Heyco-Flex II Tubing, and Heyco-Flex III Tubing securely into place, vertically or horizontally.

- Only fingertip pressure is required to snap conduit or tubing into bracket.

- Low profile design for space savings and pleasing appearance.

- Recommended distance between brackets at intervals not greater than 3 feet (1m) as required by Article 351-27 of 1996 NEC.

- Use one standard #10 (4-5M) screw for attaching bracket to panel (screw not included).

- Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.

Specifications

Material : Nylon 6/6

Flammability Rating : 94V-2

Material Temperature Index : 257°F (125°C) Maximum temperature

on part not to exceed 221°F (105°C)

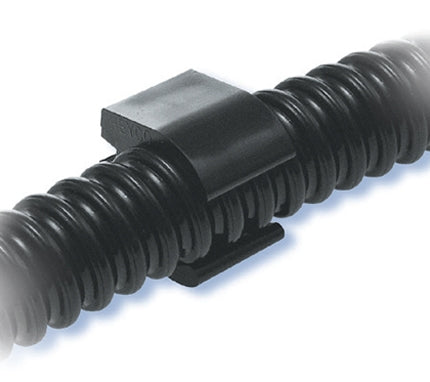

Image shown for illustrative purpose only
