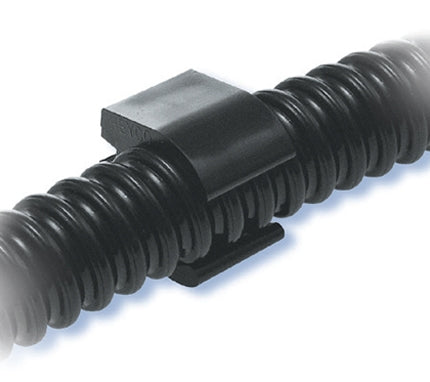

Heyco Nylon Mounting Bracket for 8451* 1027 1/2" Diameter

Heyco-Flex™ Mounting Bracket

Fits conduit/tubing size : 1/2"
PART NO. : 1027 (black)
Description : HFB 1/2

Features
- For mounting Heyco-Flex I Conduit, Heyco-Flex II Tubing, and Heyco-Flex III Tubing securely into place, vertically or horizontally.
- Only fingertip pressure is required to snap conduit or tubing into bracket.
- Low profile design for space savings and pleasing appearance.
- Recommended distance between brackets at intervals not greater than 3 feet (1m) as required by Article 351-27 of 1996 NEC.
- Use one standard #10 (4-5M) screw for attaching bracket to panel (screw not included).
- Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.

Specifications
Material : Nylon 6/6
Flammability Rating : 94V-2
Material Temperature Index : 257°F (125°C) Maximum temperature
on part not to exceed 221°F (105°C)

Image shown for illustrative purpose only
