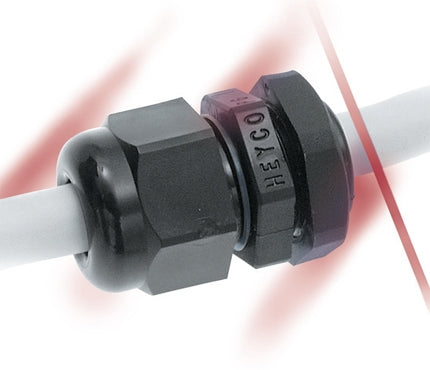

Heyco Liquid Tight Strain Relief 3216 (PG13.5)

Heyco® Original Series 35 liquid tight cordgrip

Metric thread straight-thru cable strain relief

Part# : 3216
Alternate part(s)# : LTF13.5, PG13.5
Cable diameter (minimum / maximum) : .170"/ 4.3mm - .450"/11.4mm

Features
- IP 68 rated.
- Widest range of approved cable diameters.
- Acme threads on body prevent skipping and speed installation.
- For use in clearance or threaded holes.
- All nylon construction with TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
- PG hub threads are steel conduit threads per DIN 40430.
- Locknut included

Specifations
Material : Nylon 6/6 w/TPE Sealing Gland
Certifications
UL logo Listed under Underwriters' Laboratories File E51579
UL logo Recognized under the Component Program of Underwriters' Laboratories File E51579
CSA Certified by Canadian Standards Association File 93876C
Flammability Rating : 94V-2
Temperature Rating : Static -40°F (-40°C) to 239°F (115°C) / Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating : IP 68 (70 PSI, 5 BAR)
