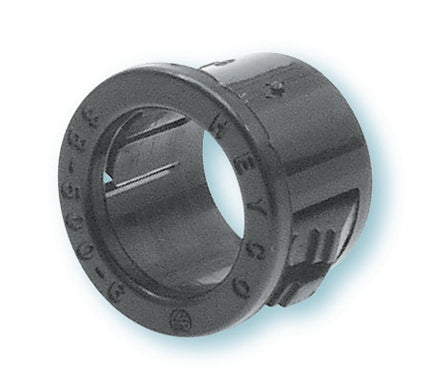

Heyco Bushing 3/8" 2030*

Heyco® snap bushing

Part# 2030 (black)

Alternate part# SB375-4

Mounting hole diameter* : .375"/9.5mm

* More detailed information available on the manufacturer's website http://www.heyco.com

Features

-Convert raw-edged holes to smooth, neat, insulated holes.

- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.

- Locking fingers snap into holes with fingertip pressure.

- Locking fingers in fractional increments up to the maximum panel thickness.

- Withstand a push back force of 35 pounds.

Specifications

Material : Nylon 6/6

Certifications

- Recognized under the Component Program of Underwriters' Laboratories File E15331

- Certified by the Canadian Standards Association File 8919

Flammability Rating : 94V-2

Material Temperature Index : 257°F (125°C)-maximum temperature on part not to exceed 221°F (105°C)

Image shown is for illustrative purpose only
