Heyco Bushing 1/2" 2053

Heyco® snap bushing

Part# 2050 (black)
Alternate part# SB500-6
Mounting hole diameter* : .500"/12.7mm
* More detailed information available on the manufacturer's website http://www.heyco.com

Features
-Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Locking fingers in fractional increments up to the maximum panel thickness.
- Withstand a push back force of 35 pounds.

Specifications
Material : Nylon 6/6
Certifications
- Recognized under the Component Program of Underwriters' Laboratories File E15331
- Certified by the Canadian Standards Association File 8919
Flammability Rating : 94V-2
Material Temperature Index : 257°F (125°C)-maximum temperature on part not to exceed 221°F (105°C)

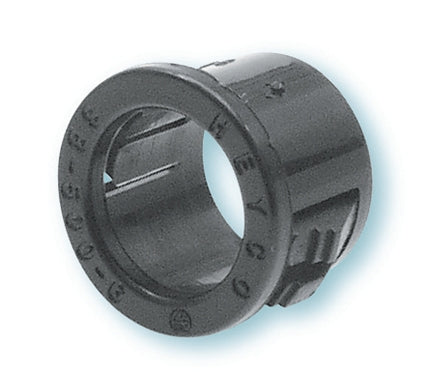

Image shown is for illustrative purpose only
