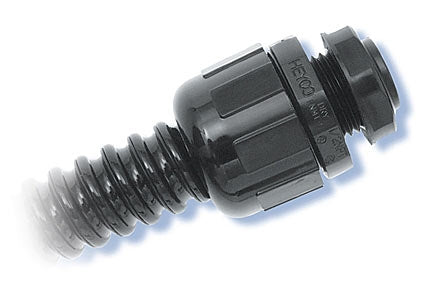

Heyco 8404 3/4" NPT Nylon Liquid Tight Strain Relief, Fit for 8452 Tubing

Heyco-Flex™ liquid tight conduit fitting

NPT/Imperial thread straight-thru version

Part# : 8404
Alternate part# : HFC3/4
Thread size : 3/4˝ NPT
Fits conduit / tubing trade size : 3/4"

For Flexible, Nonmetallic Liquid Tight Heyco-Flex I Conduit and Heyco-Flex II Tubing

Features
- No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the panel by the locknut or into an NPT threaded hole.
- Convex ferrule ensures liquid tight seal.
- No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
- Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
- Protection class IP 68 up to 70 psi (5 bar) water pressure.
- Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
- Use of a sealing washer may be required for wet locations.
- All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification and testing.)
- If using a tapped hole, Teflon ® tape is needed on the threads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
- Nylon locknut, packed separately

Specifications
Material : Nylon 6/6
Certifications
Listed under Underwriters' Laboratories File E28430
Certified by Canadian Standards Association File 84579 & 81067
Flammability Rating : 94V-2
Material Temp. Index : Maximum temperature on part not to exceed 221 °F (105 °C)
IP Rating : IP 68 up to 70 psi (5 bar) water pressure
