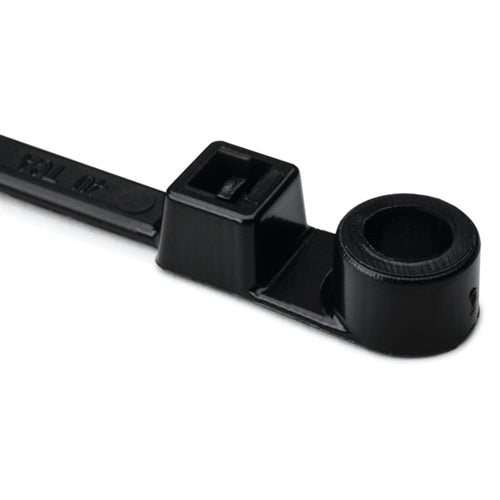

Hellermann Tyton T50MI0M4 #10 Screw Mount Cable Tie 12.4" Length 50LB Tensile Strength, Black 1000/Pack

Brand Name(s) : HellermannTyton, Hellermann Tyton

Screw Mount Tie, 50lb., 12.4" Long, Max Bundle Diameter 3.4", #10 Screw, Black

Package of 1000 pieces

Base Data

Part No. : T50MI0M4

Type : T50MI

Color : Black (BK)

Features

• Mount design secures firmly with any #10 screw.

• Screw mount style creates low insertion and high extraction force.

Identification Plate Position : none

Releasable Closure (Yes/No) : No

Tie Closure : plastic pawl

Typical Application : The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.

Variant : Inside Serrated

Product Dimensions

Min. Tensile Strength : 50.0lbs / 225N

Length (L) : 12.4" / 315.0mm

Width (W) (imperial) : 0.19"

Width (W) : 4.7mm

Height (H) : 0.23" / 5.7mm

Min. Ø Bundle : 0.06" / 1.5mm

Max. Ø Bundle : 3.4" / 85.0mm

Mounting Hole Ø : 0.22" / 5.5mm

Material and Specifications

Material : Polyamide 6.6 heat stabilized (PA66HS)

CSA Certified : No

Flammability : UL94 V2

Material Specification : RoHS

Operating Temperature : -40°F to +221°F (-40°C to +105°C)

ROHS Conformity : This product conforms to the RoHS guidelines.

UL Listed (US and Canada) : No

UL Recognized (US and Canada) : Yes

Polyamide 6.6 (PA66) Material
Continuous operating temperature : -40c to 85c
Caution : Polyamide is hygroscopic material (the amount of moisture held by hygroscopic materials is usually proportional to the relative humidity) and absorbs / releases moisture depending on its environment Temperature extremes in a short period of time affects usage : warm to cold, cold to warm The moisture level of the material will affect tensile strength, stiffness and elongation of the product.
