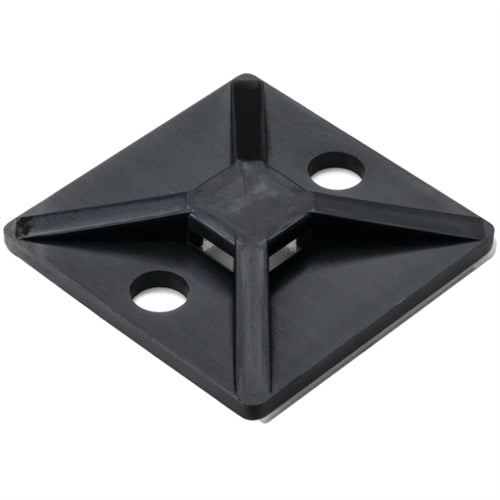

Hellermann Tyton MB4A0C2 Cable Tie Mount with Rubber Adhesive, 1.12" x 1.12" for T18-T50 Ties, Black 100/Pack

Brand Name(s) : HellermannTyton, Hellermann Tyton

Adhesive cable tie mount 1.12" Black

Package of 100 pieces

Base Data

Part No. : MB4A10C2

Type : MB4A

Color : Black (BK)

Features

• For use with T18 and T50 series cable ties to provide stability when securing bundles.

• Secures with rubber based adhesive backing and/or two or four screws.

• 4 way opening allows cable ties to be installed parallel or perpendicular to wire bundles.

Application Method : These mounting bases can be secured to a surface using rubber based adhesive.

Typical Application : HellermannTyton offers a wide variety of mounting bases suited for many applications. Mounting bases are used in conjunction with cable ties to stabilize and secure wiring bundles, both indoors and outdoors.

Product Dimensions

Length (L) : 1.12" / 28.5mm

Width (W) (imperial) : 1.12"

Width (W) : 28.5mm

Max. Cable Tie Width : 0.18" / 4.6mm

Height (H) : 0.22" / 5.6mm

Mounting Hole Ø : 0.18" / 4.6mm

Mounting Hole Centers : .80" / 20.2mm

Material and Specifications

Material : Polyamide 6.6 (PA66)

Adhesive : Synthetic rubber with base of polyethylene foam

CSA Certified : No

Flammability : UL94 V2 (excluding adhesive)

Material Specification : RoHS

Operating Temperature : -40°F to +185°F (-40°C to +85°C)

ROHS Conformity : This product conforms to the RoHS guidelines.

UL Listed (US and Canada) : No

UL Recognized (US and Canada) : Yes
