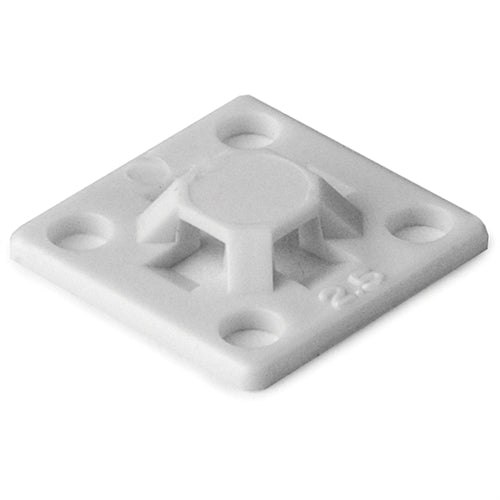

Hellermann Tyton MB2.5A10C2 Cable Tie Mount with Rubber Adhesive, 0.63" x 0.63" for T18 Ties, White 100/Pack

Brand Name(s) : HellermannTyton, Hellermann Tyton

Adhesive cable tie mount 5/8" White

Package of 100 pieces

Base Data

Part No. : MB2.5A10C2

Type : MB2.5A

Color : White (WH)

Features

• For use with T18 series cable ties to provide stability when securing bundles.

• Secures with rubber based adhesive backing and/or two or four screws.

• 4 way opening allows cable ties to be installed parallel or perpendicular to wire bundles.

Application Method

These mounting bases can be secured to a surface using rubber based adhesive.

Typical Application

HellermannTyton offers a wide variety of mounting bases suited for many applications. Mounting bases are used in conjunction with cable ties to stabilize and secure wiring bundles, both indoors and outdoors.

Product Dimensions

Length (L) : 0.625" / 15.9mm

Width (W) (imperial) : 0.625"

Width (W) : 15.9mm

Max. Cable Tie Width : 0.1" / 2.54mm

Height (H) : 0.16" / 4.1mm

Mounting Hole Ø : 0.11" / 2.8mm

Thickness of Adhesive (TA) nom. : 0.8mm

Material and Specifications

Material : Polyamide 6.6 (PA66)

Adhesive :Synthetic rubber with base of polyethylene foam / Synthetic rubber

Adhesive Operating Temperature : -4°F to +122°F (-20°C to +50°C)

Flammability : UL94 V2 (excluding adhesive)

Material Specification : RoHS

Operating Temperature : -40°F to +185°F (-40°C to +85°C)

ROHS Conformity : This product conforms to the RoHS guidelines.

UL Listed (US and Canada) : No

UL Recognized (US and Canada) : Yes
