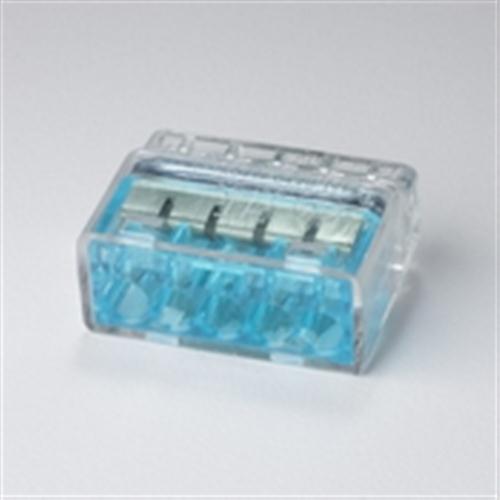

Hellermann Tyton HECP5 Helacon Plus Mini 5 Port Push-In Wire Connector, 12-22AWG Solid & 14-22AWG Stranded, Blue

HECP-5 , 5 conductor push-in wire connector , 24 A @ 450v 12-22awg / 0.5 to 2.5 mm ²
Compatible with solid / stranded wire
Color : Transparent (CL)
Brand Name(s) : HellermannTyton, Hellermann Tyton
Part No. : 148-90003

Suitable for flexible core (Yes/No) : No
Suitable for multi wire core (Yes/No) : Yes
Suitable for solid core (Yes/No) : Yes

Features:
Push-in style wire connectors
Ergonomically-friendly alternative to the traditional twist on style wire connectors.
Double Spring Technology requires low insertion force yet provides high retention values for safe, secure and reliable connections.
Unique double spring design accommodates both solid and stranded wire cores for greater versatility and can accommodate solid and stranded wires within same housing.
Low insertion forces reduces buckling of stranded wire
Separate test port for fast, easy confirmation of connection
Quick fit insertion relieves installer in difficult spots like overhead installations, eliminates twisting motion and reduces overall assembly and connection time.

Application Method:
• Make sure that power is turned off before installation
• Solid and stranded copper conductors can be used
• Strip them off approximately 11 mm
• Insert them completely into the connector
• Use voltage tester via separate test entry
• To change or correct a wire, hold and twist it alternatively left and right while pulling the connector

Stripping Length: 11 mm

Material : Polycarbonate (PC)
Flammability : UL94 V2
Operating Temperature : -22°F to +221°F (-30°C to +105°C)
Specifications : CE, cULus, DEMKO, ENEC, FIMKO, GL, KEMA-KEUR, NEMKO, SEMKO, VDE
UL Listed (US and Canada) : Yes
