Hellermann Tyton FPA Grommet Strip .016-.051", 82' Length **CLEARANCE**

Brand Name(s) : HellermannTyton, Hellermann Tyton

.016-.051" Grommet strip, Roll of 82ft

Base Data

Part No. : FPA

Type : G51PA

Color : Natural (NA)

Features

• Can be cut to length with scissors, eliminating waste and keeping stock to a minimum.

• Available in 9 sizes, for thicknesses from .016" to .512", insuring proper fit.

Typical Application

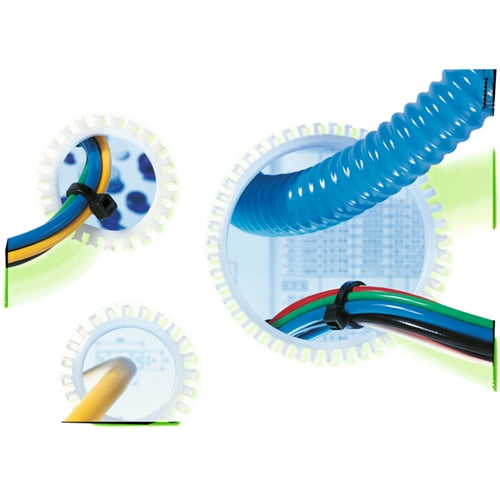

Flexiform edge-protection grommet strips are used to protect cables and wires routed through sharp-edged cutout sections.

Variant : Open

Product Dimensions

Width (W) (imperial) : 0.15"

Width (W) : 3.9mm

Width (W2) : 0.06" / 1.5mm

Height (H) : 0.17" / 4.3mm

Height (H2) : 0.11" / 2.7mm

Max. Panel Thickness : 0.06" / 1.30mm

Min. Panel Thickness : 0.02" / 0.40mm

Material and Specifications

Material : Polyethylene (PE)

Flammability : UL94 HB

Halogenfree : YES

Material Specification HF

Operating Temperature : -22°F to +176°F (-30°C to +80°C)

ROHS Conformity : This product conforms to the RoHS guidelines.
