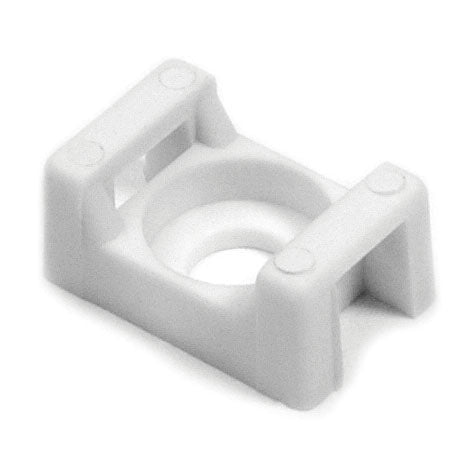

Hellermann Tyton CTM310C2 Cable Tie Anchor Mount (#10 Screw), White 100/Pack (for Cable Tie Series : T18-T120)

Brand Name(s) : HellermannTyton, Hellermann Tyton

Cable tie mount , screw version , Package of 100

Base Data

Part No. CTM310C2

Type CTM3

Color White (WH)

Features

• Designed for use with 18 through 120 pound cable ties to provide stability when securing bundles.

• Secures with a single screw providing quick installation.

Application Method

Each mount is secured with a single #10 screw.

Typical Application

Designed specifically for holding heavier cable bundles.

Product Dimensions

Length (L) : 0.86" / 21.8mm

Width (W) (imperial) : 0.61"

Width (W) : 15.5mm

Max. Cable Tie Width : 0.31" / 7.9mm

Height (H) : 0.37" / 9.4mm

Mounting Hole Ø : 0.2" / 5.1mm

Material and Specifications

Material : Polyamide 6.6 (PA66)

Flammability : UL94 V2

Material Specification : RoHS

Operating Temperature : -40°F to +185°F (-40°C to +85°C)

ROHS Conformity : This product conforms to the RoHS guidelines.

Specification : UL

UL Listed (US and Canada) : No

UL Recognized (US and Canada) : Yes
