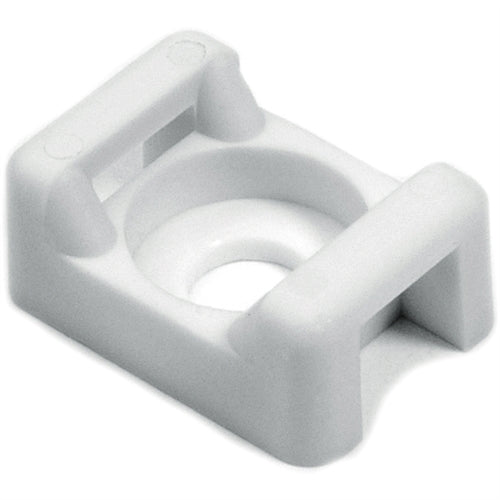

Hellermann Tyton CTM110C2 Cable Tie Anchor Mount (#8 Screw), White 100/Pack

Brand Name(s) : HellermannTyton, Hellermann Tyton

Cable tie mount , screw version , Package of 100

Base Data

Part No. CTM110C2

Type CTM1

Color White (WH)

Features

• Designed for use with 18 through 50 pound cable ties to provide stability when securing bundles.

• Secures with a single screw providing quick installation.

Application Method

Each mount is secured with a single #8 screw.

Typical Application

Designed specifically for holding heavier cable bundles.

Product Dimensions

Length (L) : 0.58" / 14.7mm

Width (W) (imperial) : 0.37"

Width (W) : 9.4mm

Max. Cable Tie Width : 0.2" / 5.0mm

Height (H) : 0.27" / 6.9mm

Mounting Hole Ø : 0.19" / 4.8mm

Material and Specifications

Material : Polyamide 6.6 (PA66)

CSA Certified : No

Flammability : UL94 V2

Material Specification : RoHS

Operating Temperature : -40°F to +185°F (-40°C to +85°C)

ROHS Conformity : This product conforms to the RoHS guidelines.

Specification : UL

UL Listed (US and Canada) : No

UL Recognized (US and Canada) : Yes
