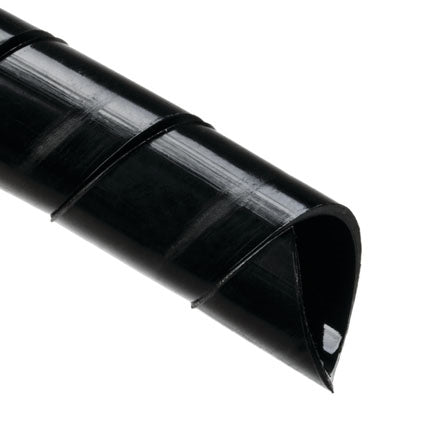

Hellermann Tyton 4NFP0C 3/4" Spiral Wrap Protective Sleeving, Polyethylene, Black 100' Roll, Max Bundle Diameter: 5"

Unit of Measure : 100ft / Roll

Brand Name(s) : HellermannTyton, Hellermann Tyton
3/4" Polyethylene Spiralwrap Black
Polyethylene is ideal for general applications that are not affected by ordinary solvents. Ultraviolet resistant (UV) black polyethylene is for outdoor use. It has same qualities as clear but also contains a UV absorber which permits it to be used in direct sunlight for long periods of time.

Part No. : 4NFP0C
Color : Black (BK)

Features
• Sheathing allows flexible routing and lead-out of cables
• The inner edges are beveled preventing damage to cables
• Sheathing is reusable and resistant to most chemicals
• Spiralwrap is U.L. Recognized

Typical Application
- Control Cabinet Doors: Protects cable from friction when one end of the cable is fastened within the panel and the other is fastened to the panel door. Allows flexibility and prevents wire chafing when door is opened and closed.
- Robotics: Protects hoses and wires during movement.
- Pneumatic Hoses: Protects hoses from abrasion while on semi-trucks and other vehicles.
- Spark Plug Wires: Lengthens the life of spark plug wires by reducing abrasion to wire insulation.
Spiral wrap can be installed in two basic ways:
- In a gapped installation, Spiral wrap is wrapped with space between the sheathing. This accommodates wire breakouts and also keeps the wire bundle flexible.
- In a butted installation, Spiral wrap is wrapped so the sheathing completely insulates the wire bundle. This provides superior abrasion resistance and additional rigidity.
Variant : Spiral Binding

Product Dimensions
Length (L) : 100.0ft / 30.48m
Bundle Diameter Range ETIM (Braided Sleeving) : 19.1 mm - 127.0 mm
Min. Ø Bundle : 0.75" / 19.1mm
Max. Ø Bundle : 5.0" / 127.0mm
Ø D : 0.75" / 19.05mm
Wall Thickness (WT) : 0.065"
Wall Thickness : 1.65mm
Pitch : 0.75" / 19.05mm

Material and Specifications
Material : Polyethylene (PE)
Flammability : Flammable
Material Specification : RoHS
Operating Temperature : -76°F to +190°F (-60°C to +88°C)
ROHS Conformity : This product conforms to the RoHS guidelines.
UL Recognized (US and Canada) : Yes
