Hellermann Tyton

Hellermann Tyton 156-04193 Inline Ratchet Clamp, 0.76 - 1.42" Bundle Dia, PA66HIRHSUV/SS, 200/ctn

Hellermann Tyton 156-04193 Inline Ratchet Clamp, 0.76 - 1.42" Bundle Dia, PA66HIRHSUV/SS, 200/ctn

This item is available by SPECIAL ORDER and requires a custom quote. Please click "Add to Quote" below to request pricing and lead time.

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

We've added a quote request option to many items which allows us to provide you with competitive pricing. We'll work fast to provide you with a quote, which will also include a lead time and shipping options.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

*All special orders are non-cancellable and non-returnable.

B&E Part Number:  156-04193

$0.00 CAD /Carton
/Carton $0.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
📄 View TDS PDF 📄 View CAD PDF
View full details

Product Description

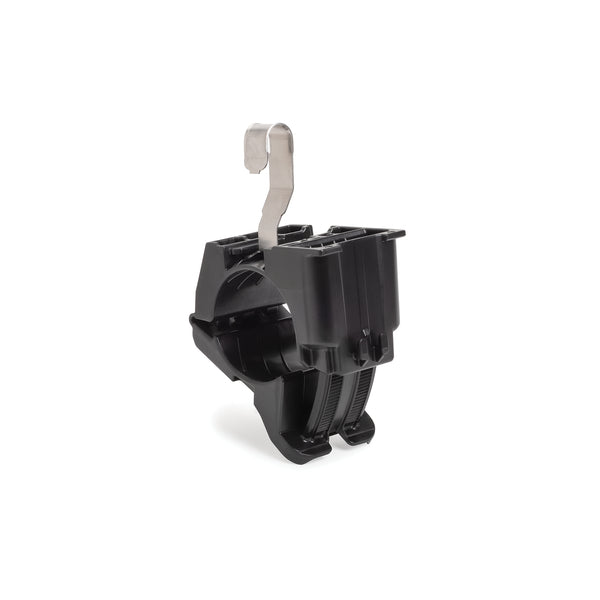

This solar Ratchet Clamp attaches to module bracket tensioning bolts without any additional hardware. It offers one-handed, toolless simplicity and size versatility for managing wires and cables on solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes for single-diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.

Features & Benefits:

  • One-piece ratchet clamp can be pre-installed on the torque tube, even prior to arrival of modules and wire harnesses onsite.
  • Quick, toolless, one-handed installation is easier and safer for installers.
  • Releasable and re-closeable clamp allows for adjusting or adding wires.
  • Plastic construction won’t cut or chafe wires.
  • Clamp saddle provides additional routing option using a cable tie, eliminating the need to drill or add complex routing parts.
  • Impact modified, heat and UV stabilized PA66 provides long-term durability in hazardous solar conditions.
  • Stainless steel mounting hanger designed for severe weather and single axis tracker movement.
