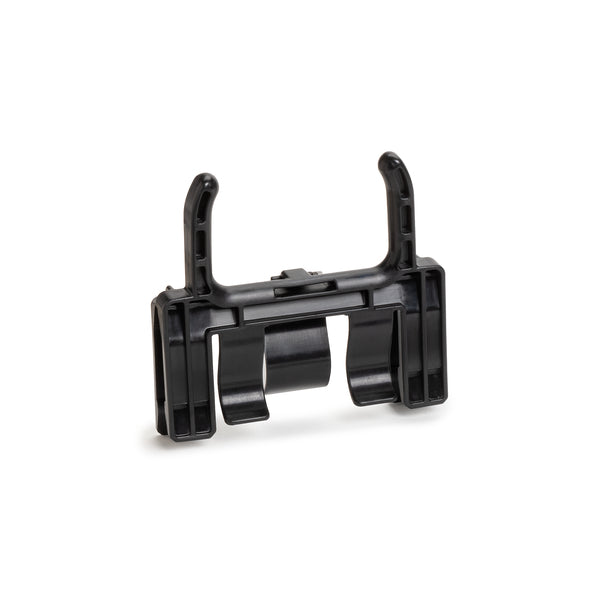

Hellermann Tyton 151-04320 Solar I-Beam Clip, 0.125 - 0.50" Panel Thickness, PA66HIRHSUV, Black, 250/Carton

Hellermann Tyton 151-04320 Solar I-Beam Clip, 0.125 - 0.50" Panel Thickness, PA66HIRHSUV, Black, 250/Carton

This item is available by SPECIAL ORDER and requires a custom quote. Please click "Add to Quote" below to request pricing and lead time.

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

We've added a quote request option to many items which allows us to provide you with competitive pricing. We'll work fast to provide you with a quote, which will also include a lead time and shipping options.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

*All special orders are non-cancellable and non-returnable.

B&E Part Number:  151-04320

$0.00 CAD /Carton
/Carton $0.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
📄 View TDS PDF 📄 View CAD PDF
View full details

Product Description

The Solar I-Beam Clip is a cable routing device affixed to the top cross section of an I-beam pile to reduce potential abrasion damage to PV cabling during cable pull operations. The oversized edge clip design can be top loaded or rolled into position, making it easier to attach to the post even after panels have been installed and space is restricted. This top-of-beam clip accommodates a wide range of I-beam thicknesses from 0.125" to 0.50". The I-Beam Clip is easy to install, creates less wobble, holds more wires and has better side loading resistance.

Features & Benefits:

  • Wide-body design prevents wobble caused by the lateral strain created during wire pull activities.
  • Tool-free installation saves time and reduces installation costs.
  • Clip-on styling for easy installation, even in constrained spaces.
  • Cradle arms guide cabling and prevent bundles from escaping during pulling operations.
  • Cable tie saddle for cinching down bundles when install is complete.
