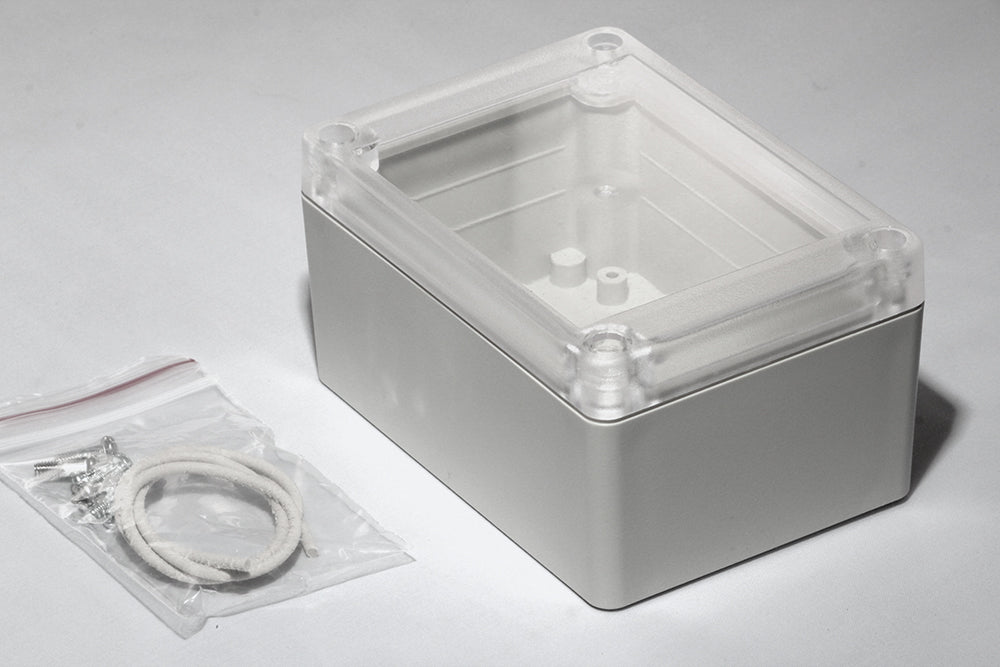

Hammond RP1095C Water-Tight ABS & Polycarbonate Enclosure, (4.13" x 2.95" x 2.17") with Clear Lid

RITEC - Watertight ABS Plastic (RP Series) With Clear Lid

Dimensions
Length : 4.13" (105mm)
Width : 2.95 (75mm)
Height (Includes Lid) : 2.17 (55mm)
Lid Recess Size : 2.56 x 3.07 (65mm x 78mm)

Finish : Light Gray

Key Features:

-Ideally suited for mounting printed circuit boards or components.
-Material - General purpose ABS plastic (material carries a UL flammability rating of UL94 HB).
-Color is a light gray with a light texture. Also available with a clear polycarbonate lid (see table below).
-Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
-Rubber gasket is included and must be field installed.
-Lid includes smooth recessed area for membrane, label or silkscreen
-Designed to meet IP 65.
-Lid is secured with self captivating - M3.5 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly). All stainless steel hardware to avoid corrosion caused by dissimilar metals.
-Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
-Internal features are maximized for mounting options:
-Internal DIN rail mounting tabs - molded in.
