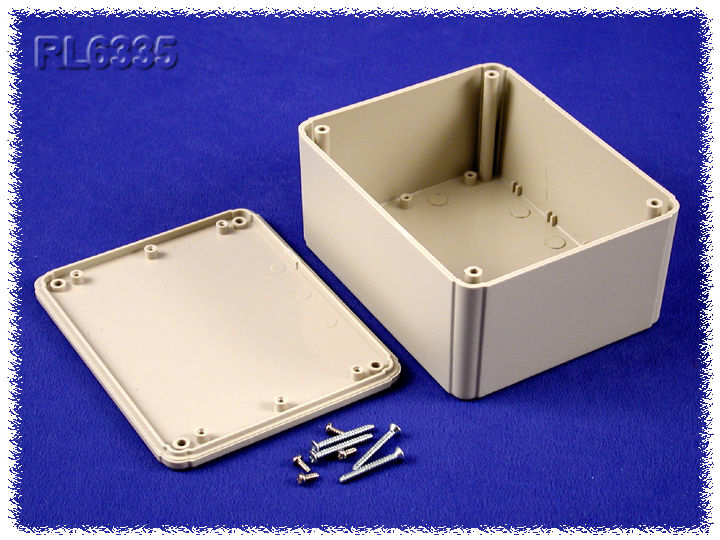

Hammond RL6335 ABS Plastic Project Enclosure, Light Gray (4.92" x 3.94" x 2.36")

RITEC - Project ABS Plastic Enclosure (RL Series) - Shallow Lid

Dimension
Length : 4.92" (125mm)
Width : 3.94 (100mm)
Depth (With Lid) : 2.36 (60mm)
Lid Recess Size : 3.78 x 3.46 (96mm x 88mm)
Bottom Recess Size : 3.78 x 3.46 (96mm x 88mm)
P.C.B. Mounting Dimensions : 4.17 x 2.56 (106mm x 65mm)
Wall Mount Dim. (Flanged Lid) : 5.39" (137mm)

Finish : Light Grey

Key Features:

Designed to house P.C. boards - for hand-held use or wall mount.
Molded in light grey - general purpose ABS plastic with a light texture.
Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
P.C. board standoffs are molded into both halves of the enclosure - (see photo tables for details).
Includes four - M3 assembly screws
