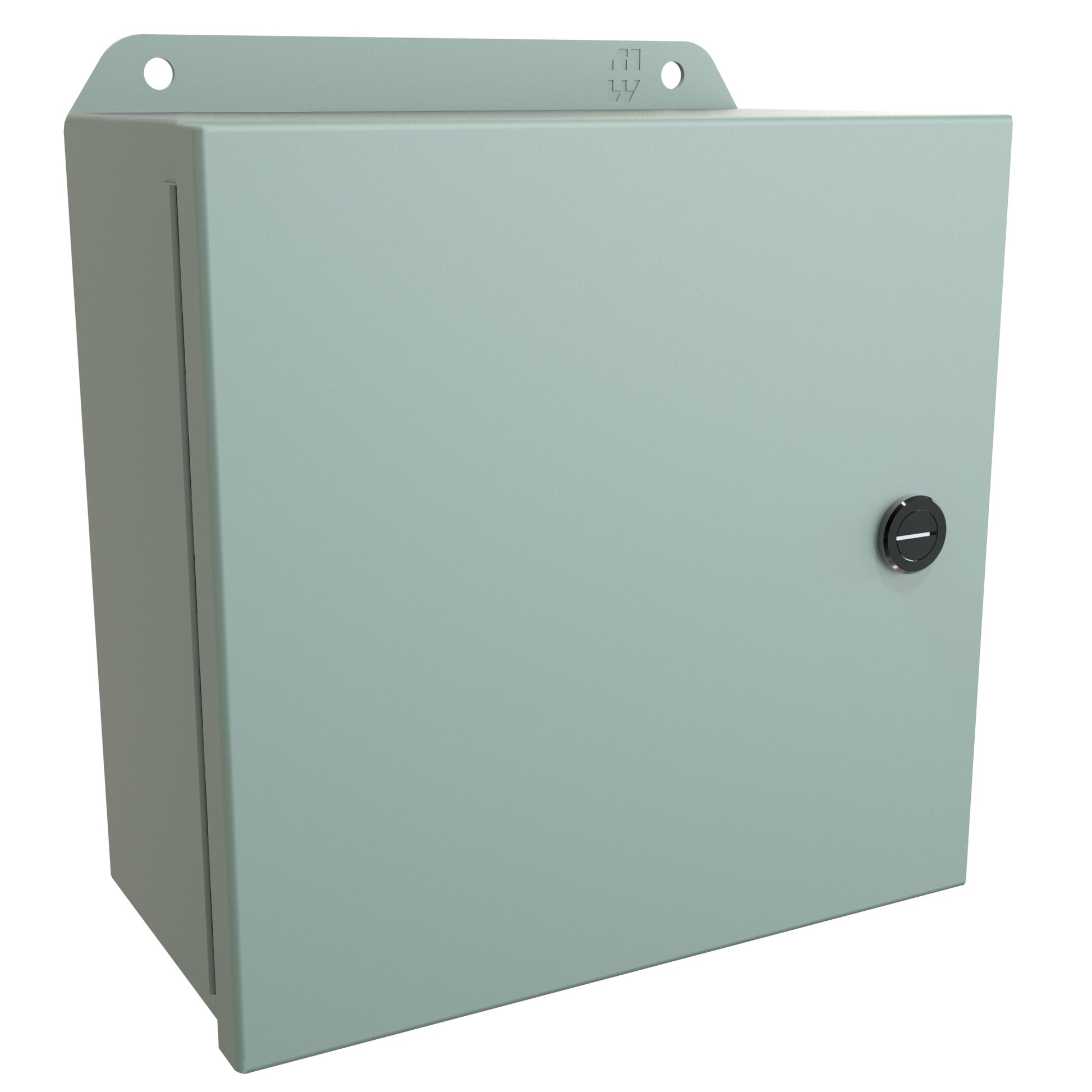

Hammond EJ884 Type 4 Mild Steel Junction Box with Continuous Hinged Door (8" x 8" x 4") Eclipse Junior Series

Hammond EJ884 Type 4 Mild Steel Junction Box with Continuous Hinged Door (8" x 8" x 4") Eclipse Junior Series

B&E Part Number:  EJ884

$82.72 CAD /Each
/Each $82.72 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
Hammond Mfg. Stock: 121
(Hammond Mfg. Stock: Ordering Info)
B&E Calgary: 4
B&E Saskatoon: 1

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

Hammond eclipse junior series type 4 mild steel junction box , ANSI 61 Gray
Continuous hinge door with quarter turn
Brand name(s) : Hammond Manufacturing

Standards
  • UL 508 Type 3R, 4, 12 and 13
  • CSA Type 3R, 4, 12 and 13
  • Complies with
  • NEMA Type 3R, 4, 12 and 13
  • IEC 60529, IP66

Construction
  • Body and cover are formed from 16 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • 14 gauge welded brackets provide for enclosure mounting.
  • Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Quarter turn latches formed from black zinc diecast.
  • Seamless poured-in place gasket.
  • Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • Grounding and panel mounting hardware provided.
