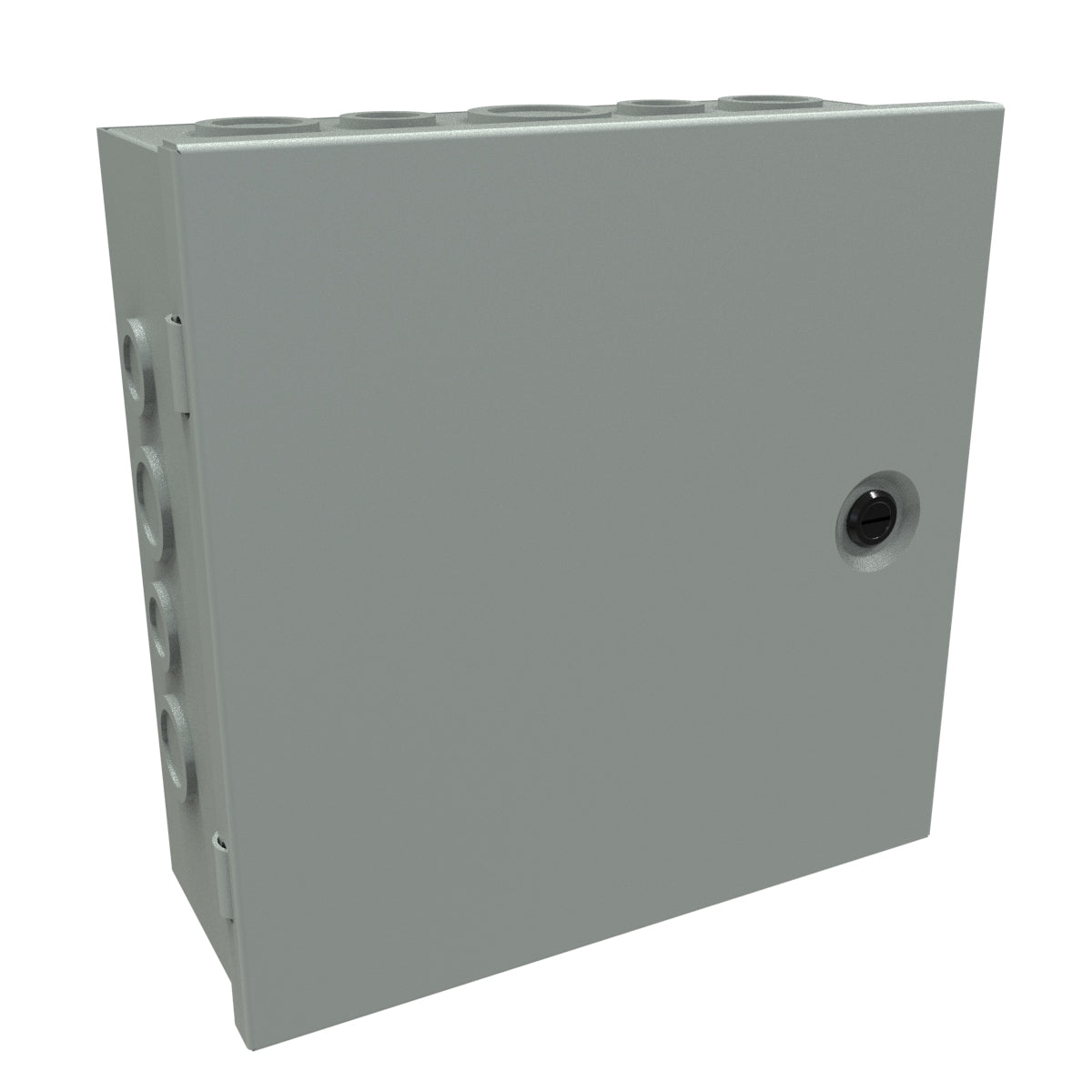

Hammond CHKO10104 Steel Enclosure with Hinged Lid (10" x 10" x 4") NEMA Type 1 & IEC 60529, IP20

Product CAD PDF
Type 1 Mild Steel Junction Box N1 Hinge Cover w/KO's, Steel/Gray Dimension: 10" x 10" x 4" Application - Designed for general purpose indoor commercial use as a junction, pull or switch box. - Hinged cover with latch provides easy access during installation and maintenance. Standards - UL-50 Type 1 - CSA Type 1 - Complies with - NEMA Type 1 - IEC 60529, IP20 Construction - Formed and spot welded from 16 or 14 gauge steel depending on size. - Formed steel covers close by use of slotted quarter turn latch. - Full swing door using butt hinges. - Easily removed knockouts on all 4 sides (see drawings for sizes and locations). - Through holes in back for wall mounting. - Grounding location embossed in body. Finish - Enclosure and cover are finished in ANSI 61 gray powder coating.
