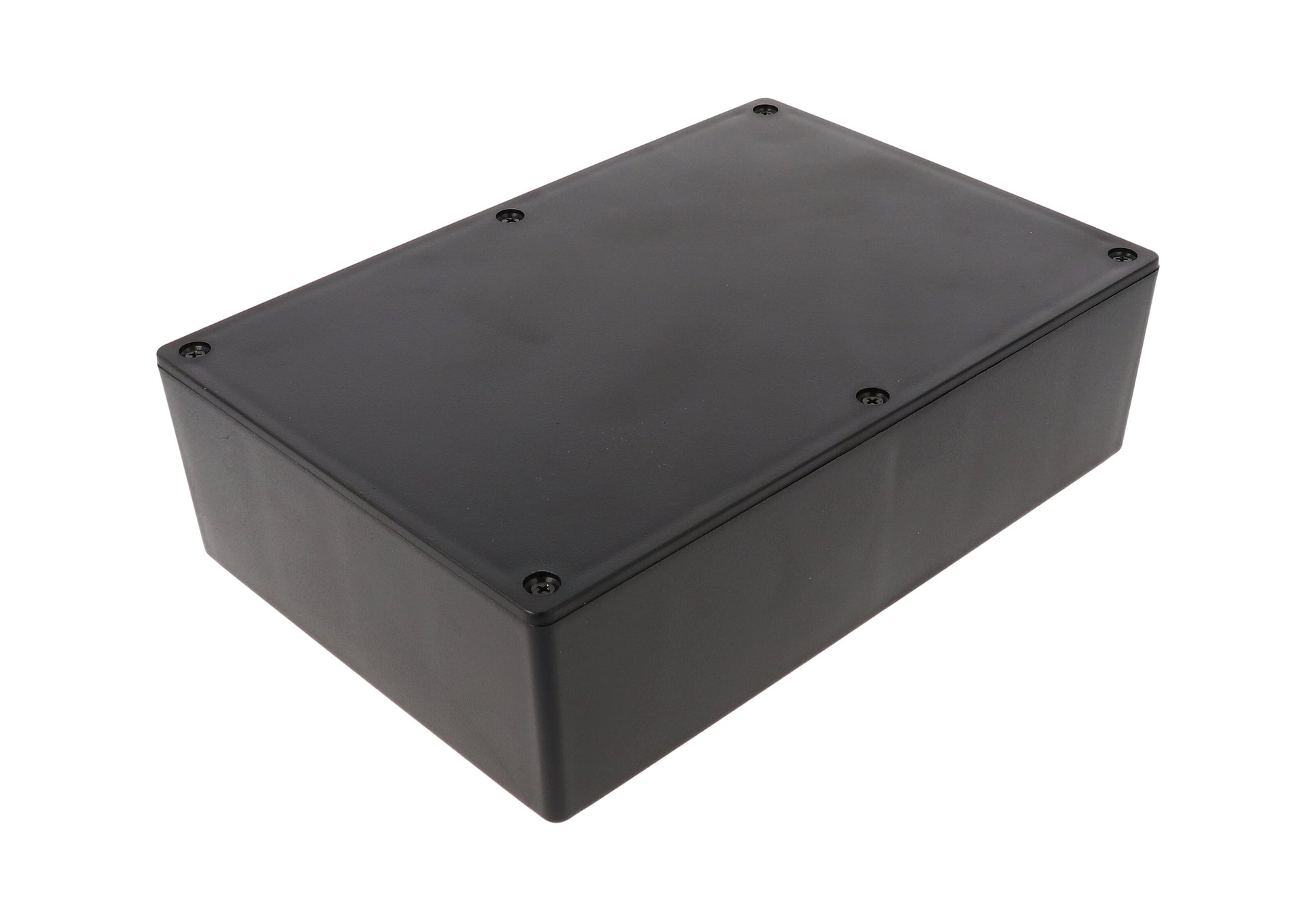

Hammond 1591XXFBK ABS Plastic Enclosure, Black (8.7" x 5.9" x 2.3")

Multipurpose Plastic Enclosure ("XX" Series)
Flame Retardant ABS Plastic

Dimensions
Length : 8.7" (221mm)
Width : 5.9" (150mm)
Depth (Less Lid) : 2.3" (60mm)

Finish : Satin Texture Black

Key Features:

-Ideally suited for mounting printed circuit boards horizontally.
-Internal sides of enclosure are smooth for easy connector installation (see photos) - except for the largest enclosure the 1591XXF size which is a universal type (ie...includes P.C.board standoffs in the lid and enclosure PLUS includes card guides). See drawing and/or photo tables for more details.
-Strong - tongue and groove lid to box construction provides protection against access of dust and splashing water.
-Designed to meet IP54.
-Lid and box both contain - molded in PC board standoffs.
-Molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
-Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
-Black enclosures include black screws
