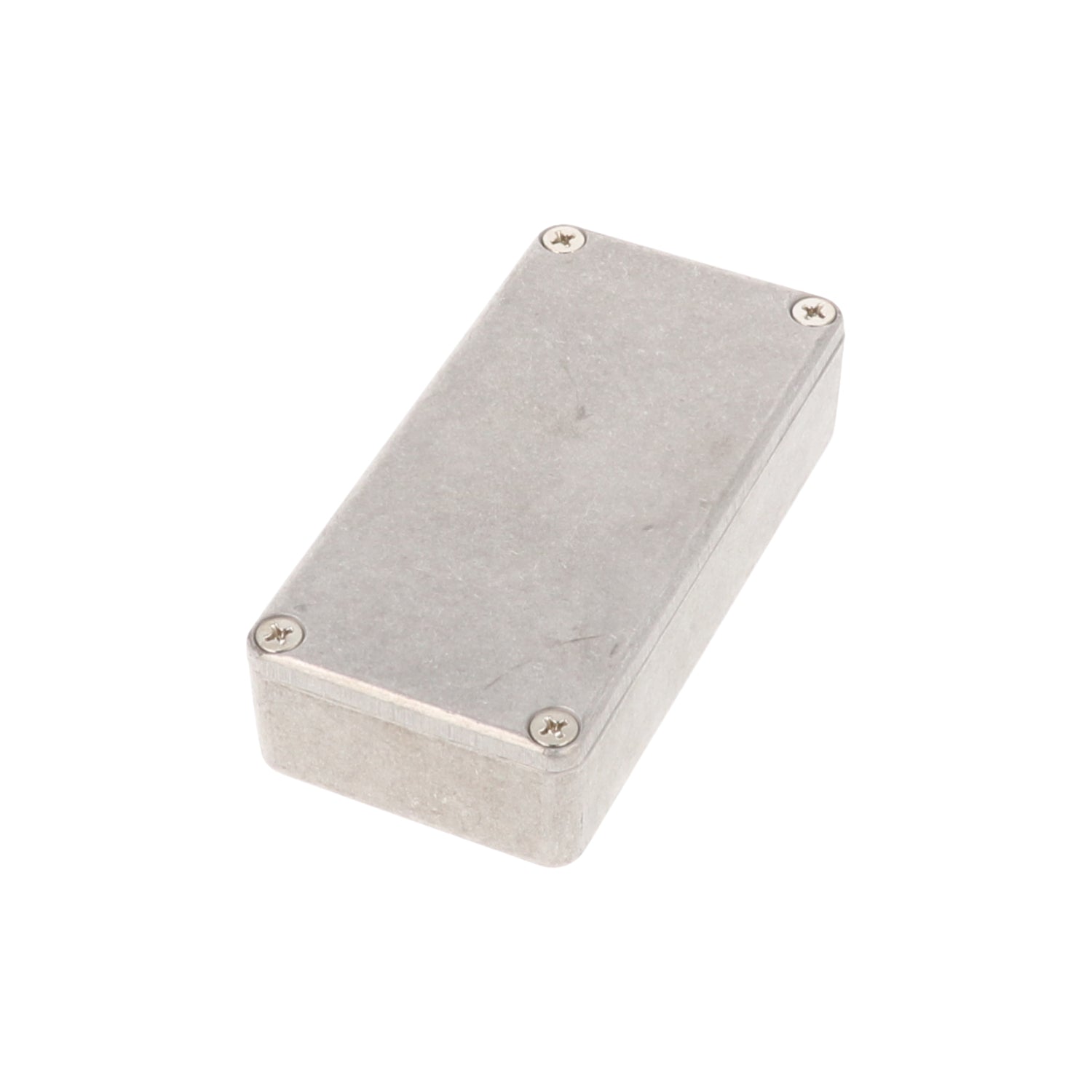

Hammond 1590G Diecast Aluminum Enclosure (3.94" x 1.97" x 0.94")

Diecast Aluminum Enclosure

Dimensions
Length : 3.94" (100mm)
Width : 1.97" (50mm)
Depth (Less Lid) : 0.83" (21mm)

Finish : Unpainted

Key Features:

- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Satin black painted version is painted with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
- Quantity four (4) 6-32 x 1/2" machine screws secure lid (or six (6) in 1590D, 1590DD, 1590DE, 1590E, 1590EE & 1590R1 or eight (8) in the 1590F) - into factory tapped holes. See drawings and/or photos for details.
- Designed to meet IP54 (see gasket kit accessory below to meet IP66).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
