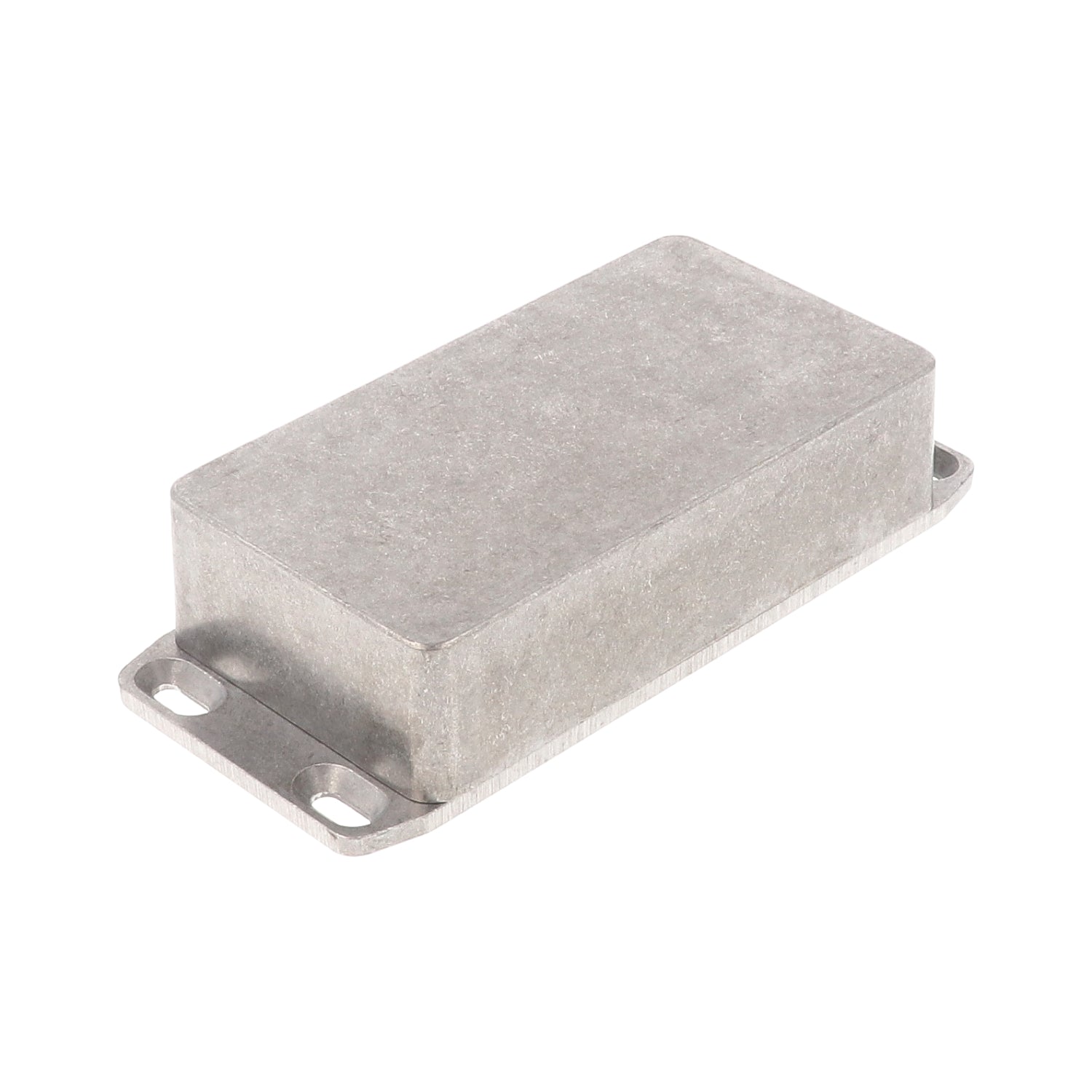

Hammond 1590BFL Diecast Aluminum Enclosure with Flange (4.4" x 2.4" x 1")

Diecast Aluminum Enclosure with Flanged Lid

Dimensions
Length : 4.39" (112mm)
Width : 2.34" (60mm)
Depth (Less Lid) : 1.06" (27mm)

Finish : Unpainted

Key Features:

- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water
- Flanged lid allows for easy mounting to walls or shelves & provides high security (as lid screws are hidden against wall or shelf). If you require easy access to enclosure see our flanged foot version.
- These enclosures share the same body and features as our regular type 1590 enclosure except the lid is extended and four countersunk holes are cast into the flanges.
- The flanged lid allows for added security as the lid screws are hidden against the wall or shelf
- Quantity four (4) 6-32 x 1/2" machine screws secure lid (or six (6) in 1590DFL, 1590DDFL, 1590EFL & 1590R1FL or eight (8) in the 1590FFL) - into factory tapped holes. See drawings and/or photos for details.
- Designed to meet IP54 (see gasket kit accessory below to meet IP66).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
