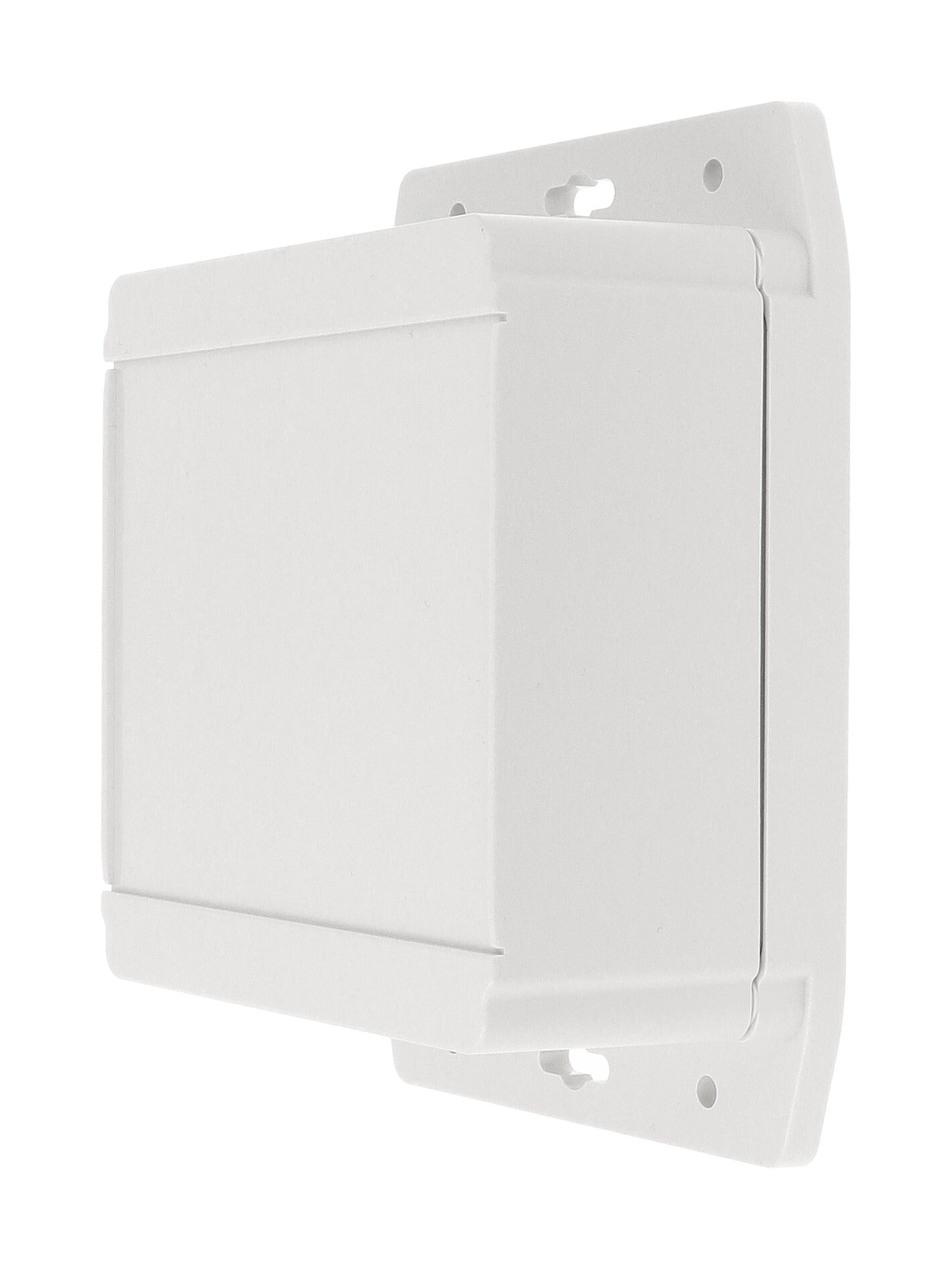

Hammond 1555N2F42GY Watertight (IP67) Polycarbonate Enclosure, Light Gray (4.7" x 4.7" x 2.44")

ABS Polycarbonate Watertight Enclosure w/Flanged Lid

Dimensions
Length : 4.7" (120mm)
Width : 4.7" (120mm)
Height (Includes Lid) : 2.44" (62mm)

Key Features:

- Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
- Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features below for details).
- Designed for wall mounting - interier is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws).
- Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
- Standoffs molded in the interior of the lid & enclosure - designed for #6 x 1/4" self tapping screws (our part number 1598ATS100)
- Polycarbonate (material carries a UL flammability rating of UL94 V0 @ 3mm) - Recommended for outdoor use.
- Color is a light gray (RAL 7035) to help keep heat absorption down.
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
- Gasket is one piece using high temperature U.L. listed - silicone rubber gasket material.
- Designed to meet IP 67 & NEMA 4, 4X, 12 & 13 ratings.
- Polycarbonate version is UL 508 listed (File # E65324).
- Flanged lid is secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly). All stainless steel hardware to avoid corrosion caused by dissimilar metals. See photo features below.
- Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options:
Internal DIN rail mounting tabs - molded into lid
Standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all sizes (see drawings for details).
