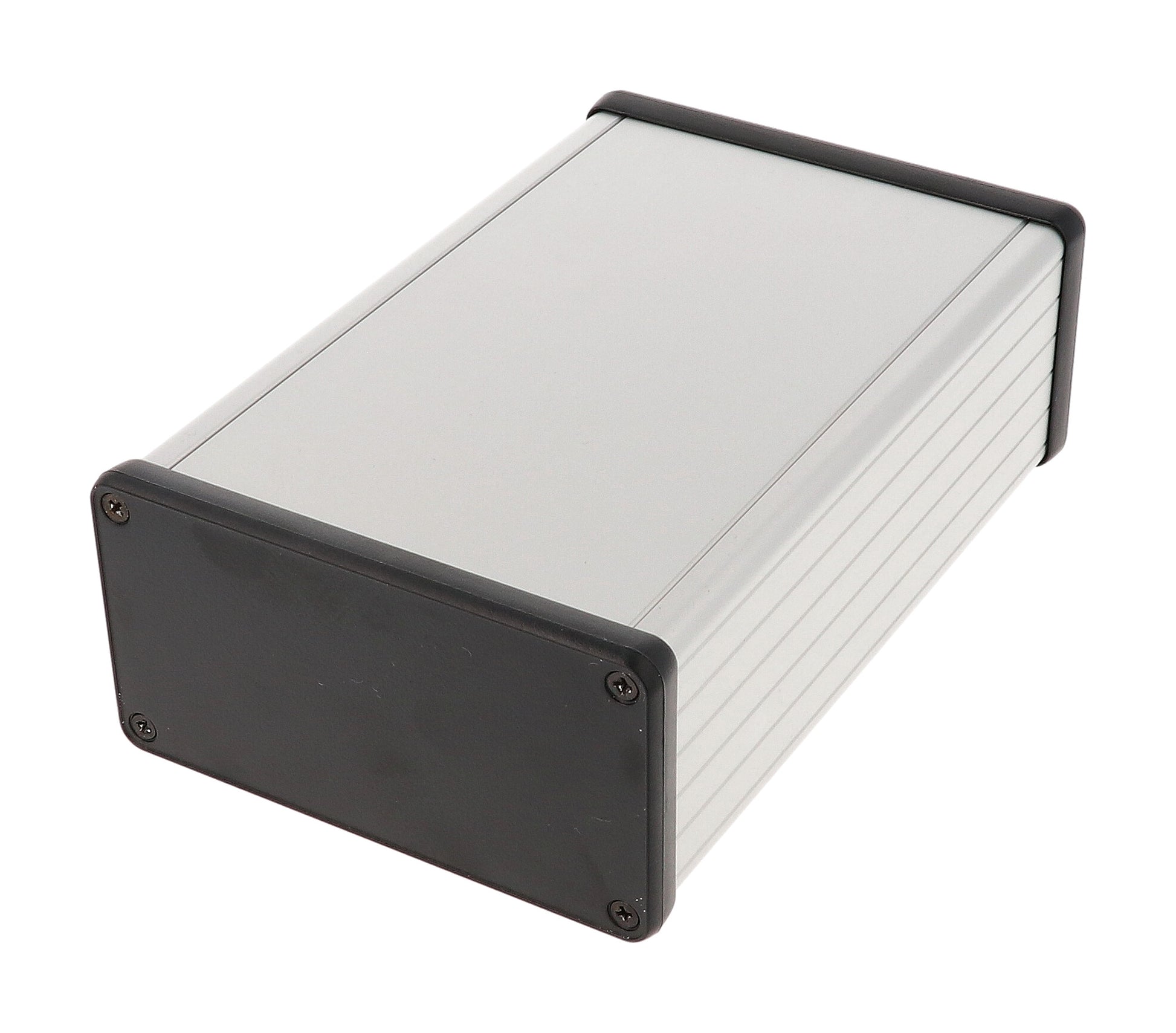

Hammond 1455N1602 Extruded Aluminum Enclosure (6.3" x 4.05" x 2.1")

Extruded Aluminum Enclosure w/Plastic End Panels
Anodized Color : Clear
Dimensions
Length : 6.30" (160mm)
Width : 4.06" (103mm)
Height : 2.09" (53mm)

Key Features:

Designed to house P.C. boards or for equipment interfacing.
Sized for standard Eurocards.
P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
Rugged body constructed from extruded aluminum with a minimum thickness of .06" (1.5 mm).
Extruded body includes a slide removable "belly" plate - except in smaller "A", "B" and "C" sizes (ie...1455A802, 1455B1202 sizes etc.)

Includes:

- Two easy to machine, black solid ABS plastic end panels with integral bezel
- Extruded, anodized aluminum body
All hardware - end panel screws are #6 x 3/8" TTT - thread rolling, steel screws with a #4 flat head phillips drive.
- Self adhesive rubber feet
NOTE: Recommended screw torque is 5 lbf/in
