Hammond

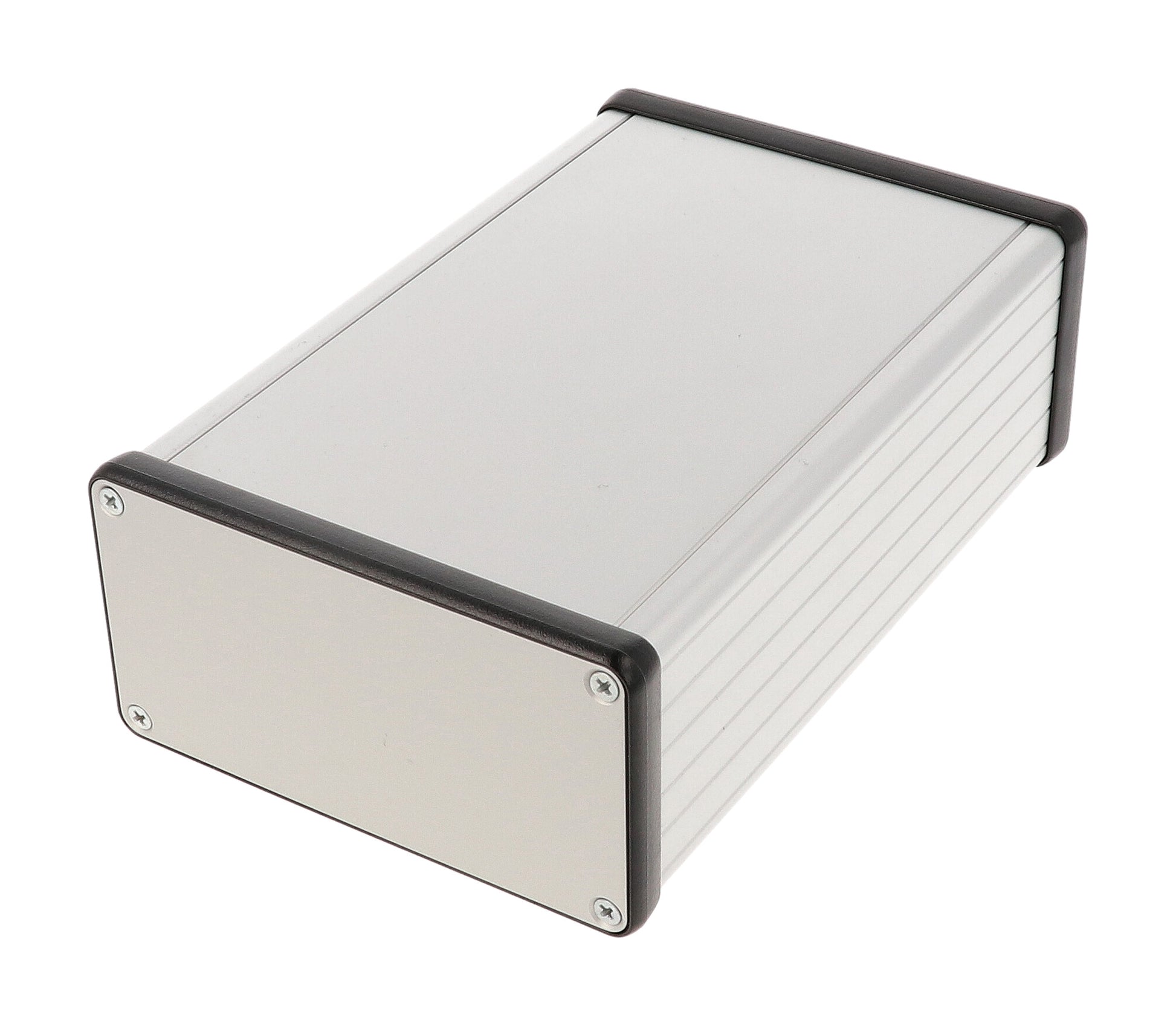

Hammond 1455N1601 Extruded Aluminum Enclosure (6.3" x 4.05" x 2.1")

Hammond 1455N1601 Extruded Aluminum Enclosure (6.3" x 4.05" x 2.1")

B&E Part Number:  1455N1601

$37.81 CAD /Each
/Each $37.81 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
Hammond Mfg. Stock: 534
*Supplier Stock. Learn more here.
B&E Calgary: 1
B&E Saskatoon: 0

Status: In Stock
📄 Series PDF 📄 View CAD PDF
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

Extruded Aluminum Enclosure w/Metal End Panels
Anodized Color : Clear
Dimensions
Length : 6.30" (160mm)
Width : 4.06" (103mm)
Height : 2.09" (53mm)

Key Features:

Designed to house P.C. boards or for equipment interfacing.
Sized for standard Eurocards.
P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
Rugged body constructed from extruded aluminum with a minimum thickness of .06" (1.5 mm).
Extruded body includes a slide removable "belly" plate - except in smaller "C" sizes (ie..1455C801, 1455C1201 sizes)

Includes:

- Extruded, anodized aluminum body
- Two aluminum end panels
- All hardware - end panel screws are #6 x 3/8" TTT - thread rolling, steel screws with a #4 flat head phillips drive - with zinc plate finish (clear).
- Self adhesive rubber feet.
NOTE: Recommended screw torque is 5 lbf/in
