Hakko FR811-04 Advanced SMD Hot Air Rework System, ESD-Safe, with Vacuum Pickup

Hakko FR811-04 Advanced SMD Hot Air Rework System, ESD-Safe, with Vacuum Pickup

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

*All special orders are non-cancellable and non-returnable.

B&E Part Number:  FR811-04

$3,033.56 CAD /Each
/Each $3,033.56 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

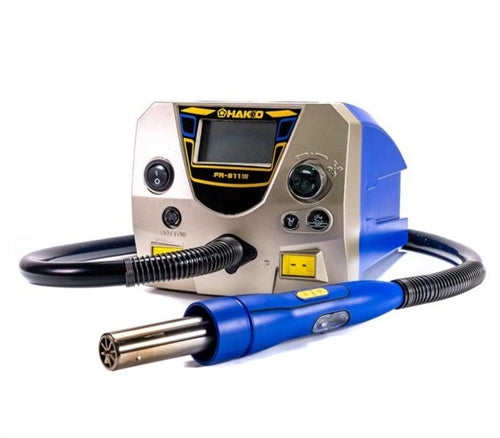

The FR-811 is a complete SMD rework system, featuring dual thermocouple inputs for part and board monitoring, PC integration via USB port with Hakko software, an additional external USB port for flash drive memory for storage of profiles, onboard storage of up to 50 profiles, manual and auto modes, auto teach mode for profiling, password lockout, and lots more!

•New graphic interface display and navigation system that simplifies operation

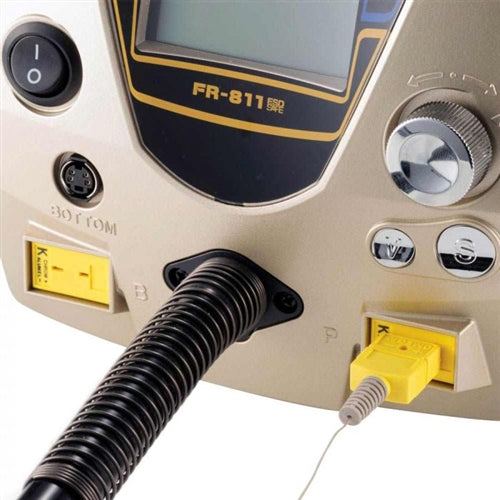

•Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process.

•Automatic mode gives users the ability to fully program profiles with up to 6 stages

•Onboard storage of up to 50 profiles with an external USB port for flash drive memory for storage of profiles

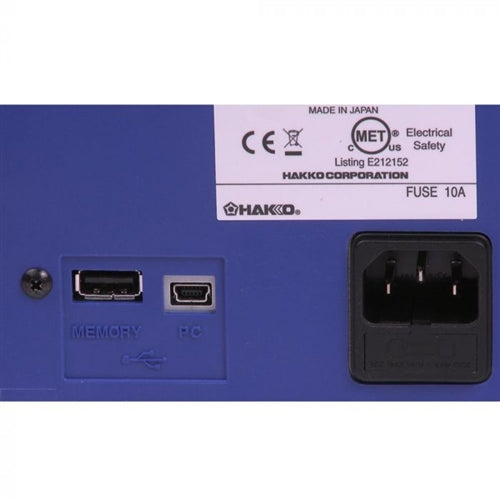

•A dedicated USB port can also be used to integrate the FR-811 with a PC using the included software - Note: Software is compatible with Windows 7 through Windows 10.

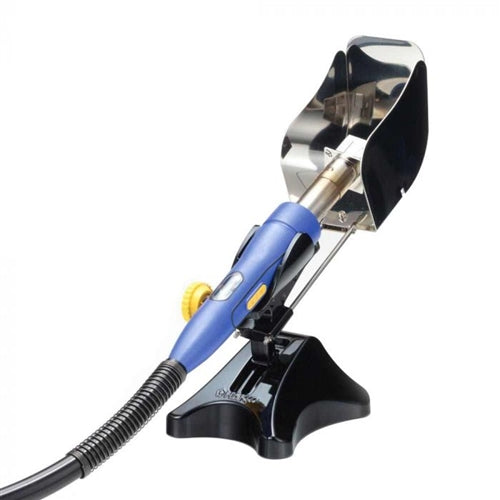

•Integrated vacuum pickup with a visual indicator in the handpiece that indicates when the component has been completely reflowed

Combine the optional C5016 bottom heater, which integrates with and is fully controlled by the FR-811, with the C5027 board holder, C5028 or C5029 handpiece fixture and the 999-267 vision kit, and the FR-811 transforms into a complete, economical SMD rework system that is ideal for bottom terminated components.

Note: The HAKKO FR-811 is compatible with older generations of nozzles from the FR-801, FR-802 and FR-803B hot air stations. An adapter is not required to use the older nozzles
