Hakko FR810B-05 SMD Hot Air Digital Rework Station, Includes Vacuum & FR-810B *Nozzles Not Included*

Hakko FR810B-05 SMD Hot Air Digital Rework Station, Includes Vacuum & FR-810B *Nozzles Not Included*

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

*All special orders are non-cancellable and non-returnable.

B&E Part Number:  FR810B-05

$1,375.20 CAD /Each
/Each $1,375.20 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

SMD HOT AIR REWORK STATION

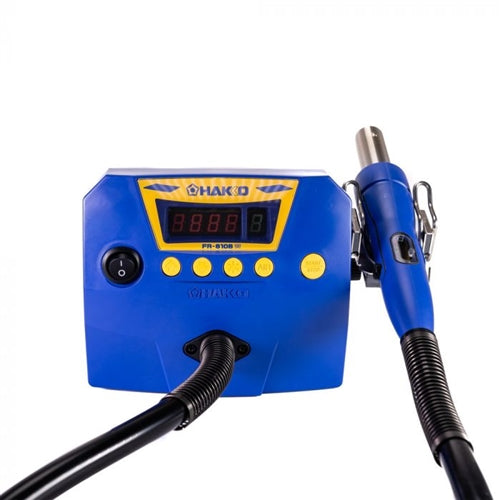

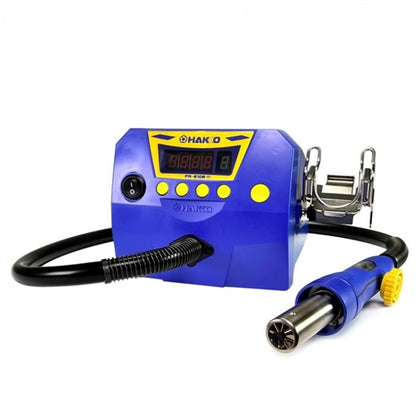

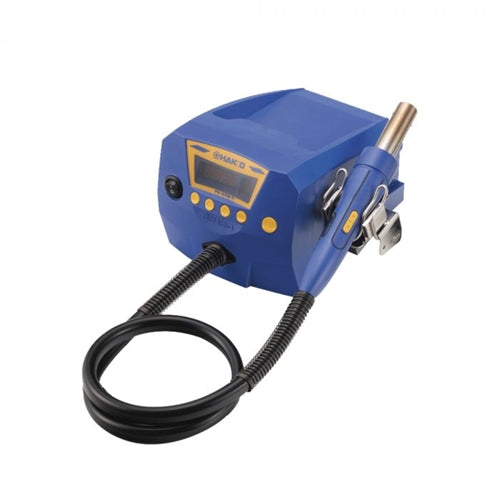

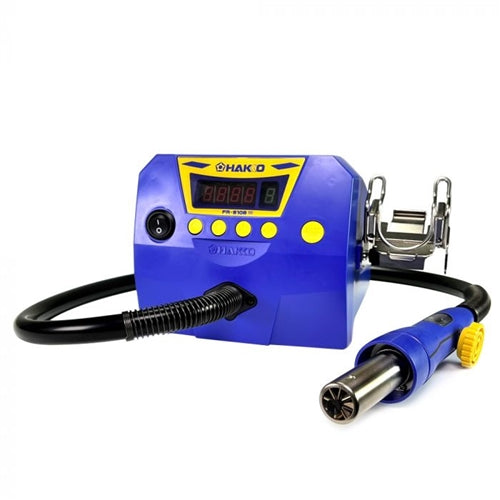

The HAKKO FR-810B is ideal for removing SMDs and includes an integrated vacuum pickup system with a special visual indicator in the handpiece that allows the operator to visually see when the component has completely reflowed and is safely lifted from the pad. This special feature allows the operator to lift the handpiece without fear of damaging the pads or leads. The HAKKO FR-810B Hot Air Rework Station sets a new bar for convective rework. The new, compact and lightweight design (only 3.3 lb.) features a quiet, self-contained turbine air supply, capable of delivering up to 115 L/min.. The new heating element design improves durability, provides a top end temperature of 1120°F (600°C) and eliminates the quartz glass insulator tube.
Additionally, new N51 Series quick-change hot air nozzles for SMT components that are specifically designed for use with the new vacuum pickup system are also available. These newly designed nozzles are compatible with the HAKKO FR-810B and FR-810, and the "older" nozzles from the HAKKO FR-810, FR-803B, FR-802 and FR-801 hot air stations are also compatible with the FR-810B.

Note: Please be careful when using "older" HAKKO N51 Series nozzles as some select nozzles are NOT compatible with the vacuum pick up feature and can cause damage to the unit if used improperly. Please see Product Bulletin 381 (PB381) "Change to N51 Series Nozzles" and the FR-810B User Manual, section 4 for more information.

Features:

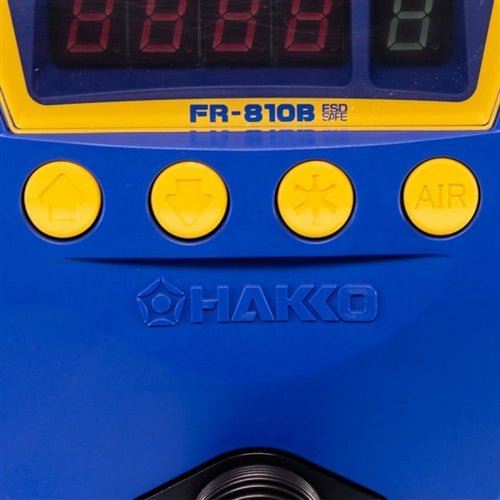

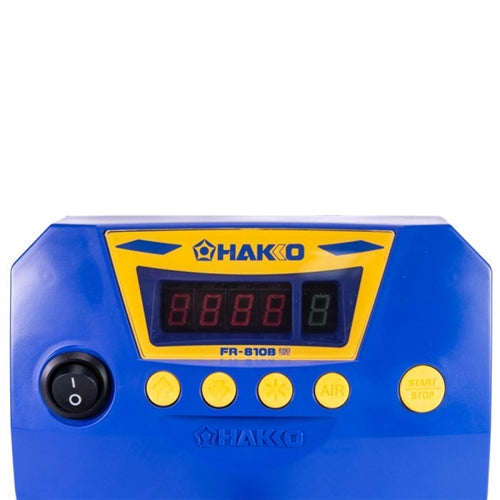

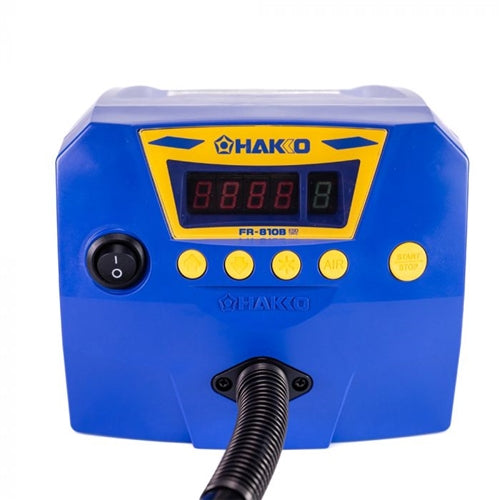

• easy to read digital display for both temperature and air level

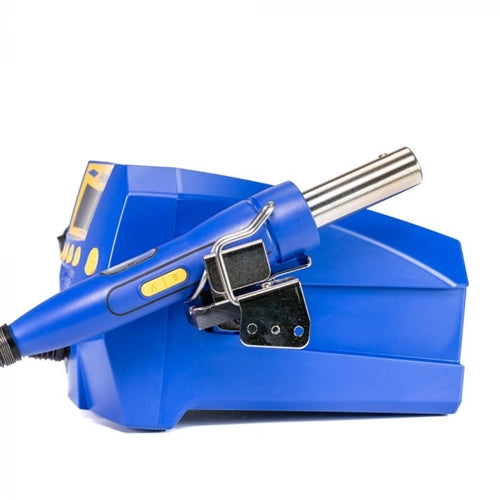

• slender handpiece with integrated Start/Stop button
• the ability to store up to 5 user programmable presets for temperature, airflow and time
• new Preset Chain feature that allows the operator to link up to 5 presets to run in sequence, simulating a 5-heating zone reflow profile for SMD components
• Auto Power-Off
• Various single jet nozzles with larger sizes available; no adapters required when using older generation nozzles
• Password Lockout to prevent unauthorized setup changes
