Product Description

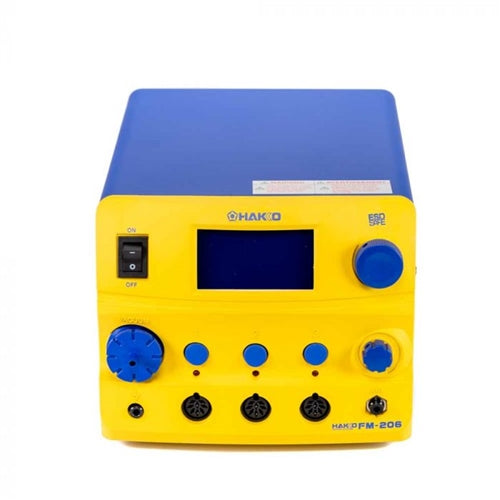

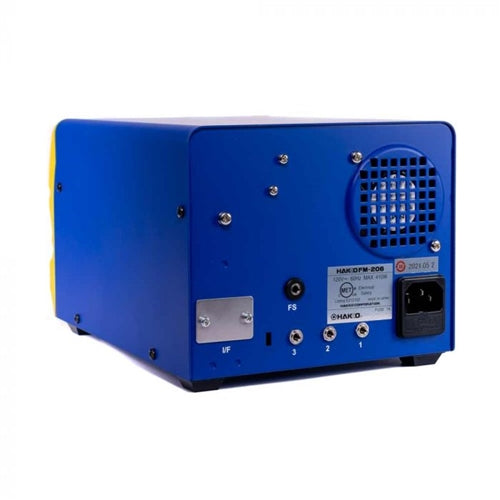

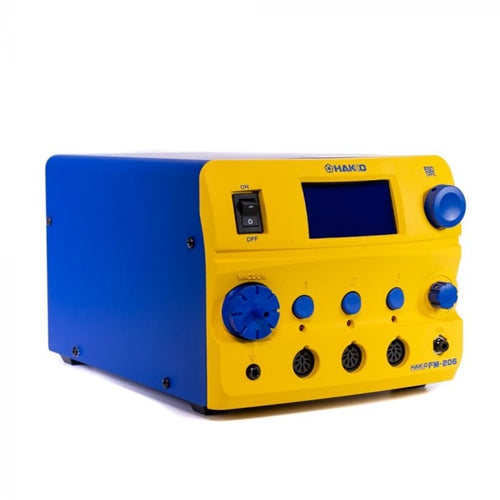

FM-206 Solder-Tweezer-Air Configuration
The Hakko FM-206 3-Port Rework Station will power any Hakko FM Series handpiece, including the FM-2027, FM-2030, FM-2032, FM-2022, FM2023, FM-2024, FM-2026 and FM-2029 thus offering the ability for you to tailor the station to fit your specific rework needs. The station's sleek, compact design minimizes loss of bench space and its powerful ports allow the use of the Hakko FM-2029 single hot air handpiece, and, or simultaneous use of the Hakko FM-2030 heavy duty soldering iron, making this the ultimate rework station.

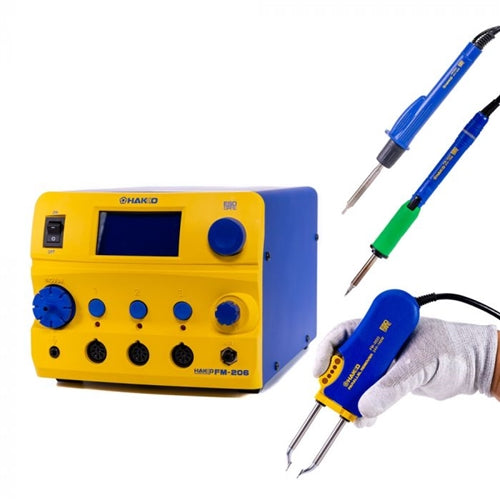

The Hakko FM206-STA configuration contains:

(1) FM-2027 soldering iron (FM2027-06 Kit)
(1) FM-2022 Parallel Remover (FM2022-05 Kit)
(1) FM-2029 Hot Air Handpiece (FM2029-01 Kit)
• FM206-55 station is included.
• NOTE: Tips and Nozzles are NOT included with station or any configuration

Features:

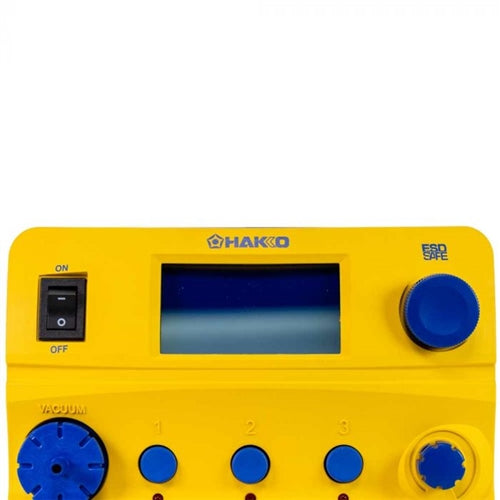

• Graphic User Interface for easy setup and operation
• 3 simultaneous powered ports
• Self-contained pump for vacuum and air flow
• Digital airflow indicator
• Configurable display in °C or °F
• High performance hot air handpiece ramps up to max temp in < 20 secs
• Capable of hot air rework of 0201, 01005 and up to 10x10mm QFNs
• Meets or exceeds J-STD-001
• Manual or Automatic profile for hot air
• Auto shutoff with sleep function
• Passcode protected
• Security lock to protect against theft or unauthorized re-location
• Integrates with the Hakko FR-830, FR-870B and FR-872 Preheaters
• Low cost composite hot air nozzles
• Desoldering delay timer
• Optional footswitch for pump operation
• Option for external gas supply for hot air
• ESD safe by design

Technical Info



To learn how to use this rework station - visit Hakko's video library

• change the channel preset labels
• change the parameter settings
• change the preset and working temperature
• set an auto hot air profile with the FM-2029 hot air pencil
• turn off the grip alarm (if not using all 3 handpiece ports)
