Hakko FA430-16 Bench Top Smoke and Fume Extraction System Without Duct & Hood Kit
Hakko FA430-16 Bench Top Smoke and Fume Extraction System Without Duct & Hood Kit
Special Orders
With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.
Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.
Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.
*All special orders are non-cancellable and non-returnable.
SKU: B&E Part Number: FA430-16
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
Couldn't load pickup availability
Product Description

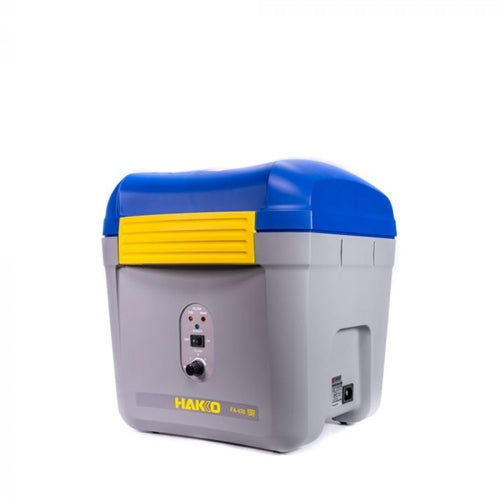

The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area.
** Duct and hood accessories not included - special order **
Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.
FUME AND SMOKE EXTRACTION SYSTEM
The Hakko FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. (Loc-Line duct with rectangular nozzle sold separately. See Accessories for details.)
Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

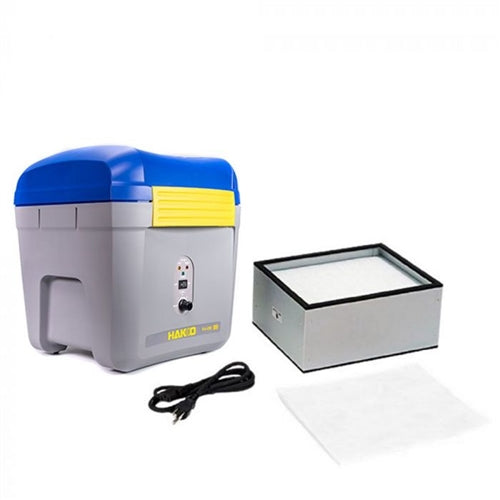

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.
The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.
The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter :
• Powerful suction
• Quiet operation
• 3-airflow adjustment modes: High, Medium, Low
• Free standing ducts

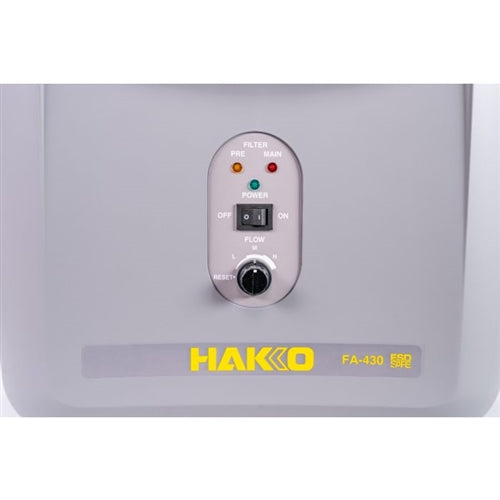

• To maintain optimum filtering efficiency, special filter replacement indicators on the front panel notify you when it is time to replace the filters.
