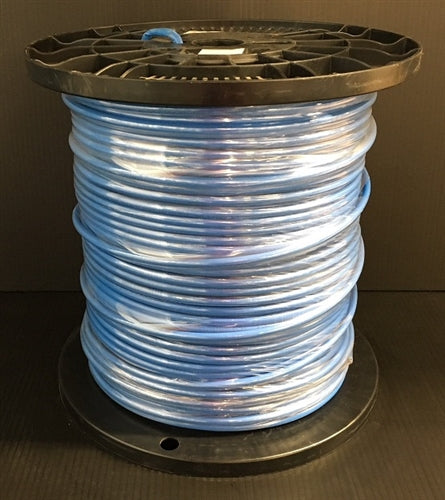

General Cable 24404L5 Carol 24AWG Cat5e Cable Blue (2133496E) Shielded (305M = Full Roll)

Sold by the meter

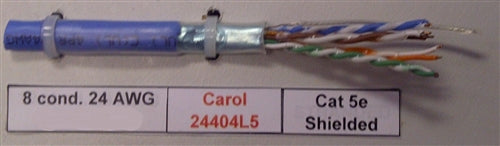

Cat5e computer network cable, 8 / 24awg
Manufacturer part# 2133496EM
Brand name(s) : General Cable, Carol Brand
CMR, non-plenum

Features:
â– Foil shield reduces electromagnetic interference (EMI) for optimal performance
â– TRU-Mark ® print legend contains footage markings from 1000' to 0'
â– Made in U.S.A.

Applications:
â– IEEE 802.3: 1000 BASE-T, 100 BASE-TX,10 BASE-T, PoE, PoE+
â– CDDI, Token Ring, ATM
â– Broadband and Baseband Analog Video Standard Compliances
â– ANSI/TIA 568-C.2
â– UL 444
â– RoHS Compliant Directive 2011/65/EU
â– ANSI/TIA 862 (Building Automation)
â– ICEA S-90-661
â– ISO/IEC 11801 Ed. 2.0 (Class D)

Depending on locality , municipal & provincial building code bylaws related to fire safety (CMR / CMP / FT1 / FT4 / FT6) may apply when installing cable in a residential or commercial installation. Please check with your local bylaw office / website for rules and regulations for municipal & provincial electrical code.

Manufacturer datasheet - 24404L5 (Adobe Reader required to read datasheet)
NEC and CSA Fire Rating (Adobe Reader required to read datasheet)

Conductors : 24 AWG solid bare annealed copper
Insulation : Polyolefin

Color Code:
• Pair 1: Blue-White/Blue
• Pair 2: Orange-White/Orange
• Pair 3: Green-White/Green
• Pair 4: Brown-White/Brown

Core Tape : Polyester
Drain Wire : 26 AWG stranded (7/34) solid tinned copper Shield
Polyester-backed aluminum foil (aluminum side in) Jacket
Flame-Retardant PVC
