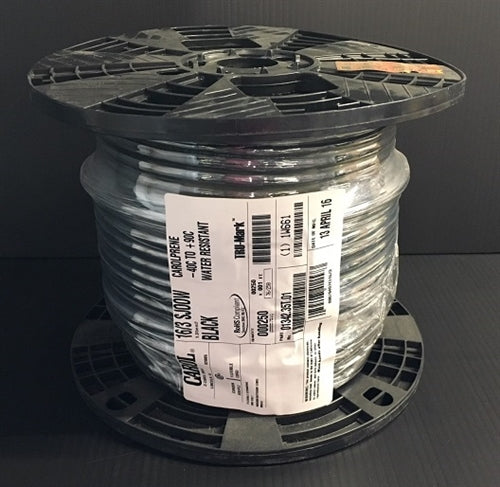

General Cable 16AWG 3 Conductor SJ00W 90C DEG-300V 01342 Carol Brand Premium Grade EPDM Cabtire (76M = Full Roll)

Sold by the meter

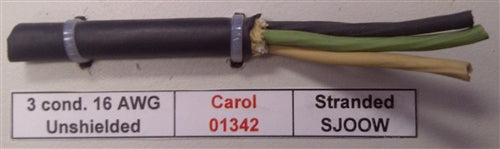

3C16 16awg EPDM SJOOW premium electrical cord, stranded
Brand name(s) : General Cable, Carol Brand

Applications:
• Portable tools and equipment
• Portable appliances
• Small motors and associated machinery

Features:
• Excellent resistance to oil and moisture
• Good tensile strength, elongation and aging characteristics
• High flexibility
• Excellent abrasion resistance
• Water-resistant*
• UL Listed and CSA Certified for indoor and outdoor use
• Ozone-, sunlight (UV)- and weather-resistant
• TRU-Mark ® sequential footage marking

Depending on locality , municipal & provincial building code bylaws related to fire safety (CMR / CMP / FT1 / FT4 / FT6) may apply when installing cable in a residential or commercial installation. Please check with your local bylaw office / website for rules and regulations for municipal & provincial electrical code.

Manufacturer datasheet - 01342 (Adobe Reader required to read datasheet)

Conductors: Fully annealed stranded bare copper
Insulation: Premium-grade, color-coded 90°C EPDM

Jacket:
• Carolprene®, black
• Temperature range: -40°C to +90°C

Jacket marking:
• CAROL (SIZE) (mm2) 90°C (UL) Water resistant SJOOW CSA (-40°C) FT2
P-7K-123033 MSHA 300 VOLT ROHS
MADE IN USA (TRU-MARK sequential footage)

Industry approvals:
• UL Flexible Cord - UL 62
• CSA Flexible Cord - C22.2-49
• MSHA Approved
• RoHS Compliant
