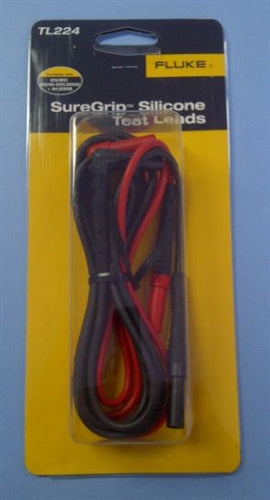

Fluke TL224 Suregrip Insulated Test Leads

Product overview: Fluke TL224 SureGrip™ Insulated Test Leads

The Fluke TL224 SureGrip™ Test Lead Extenders include silicone leads and lead couplers with reinforced strain relief. These extenders have banana jack terminations with right angle connectors on one end and straight connectors on the other.
Extend your reach

With 1.5 meters of added length you can reach test points that were previously inaccessible. Rubber over-molded surfaces and finger-hugging curves gives you a comfortable, reliable grip. With both right angle and straight connectors in one product, you also gain a variety of test lead configurations to get into those hard-to-reach areas.
Designed for safety

The Fluke TL224 SureGrip™ Test Lead Extenders are CAT III 1000 V, CAT IV 600 V rated.
Compatible with Fluke test probes and alligator clips

Key Features

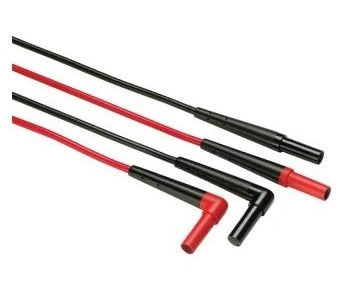

Right angle connector on one end and straight on the other
Extends test leads by 1.5 meters
Silicone-insulated wire resists heat and cold
CSA Listed

TL224 lead extensions are compatible with a wide range of Fluke test probes and clips. Some often-used probe tips include:

TP175 TwistGuard™ Test Probes
TP220 SureGrip™ Industrial Test Probes
AC220 SureGrip™ Alligator Clips
AC285 SureGrip™ Alligator Clips
AC280 SureGrip™ Hook Clips
TP1 SlimReach™ Test Probes
AC283 SureGrip™ Pincer Clips

CAT IV 600 V, CAT III 1000 V
CSA rated
Maximum current : 10 amps
Maximum voltage : 1000v

Temperature: -20c to 55c (-4F to 131F)
Lead length : 1.5m/4.9ft

Warranty : 1 year
