Product Description

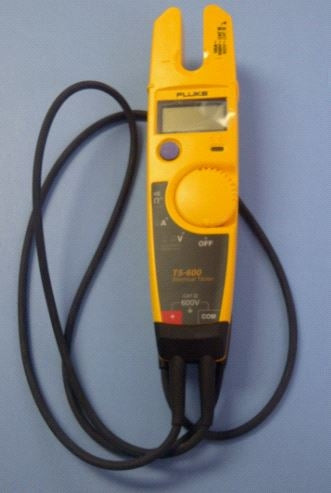

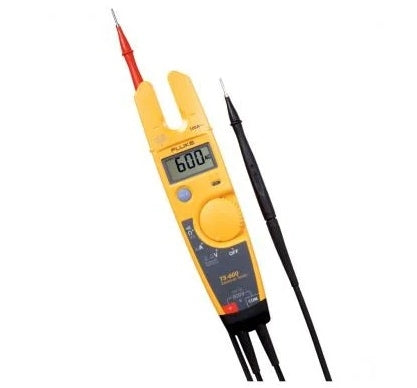

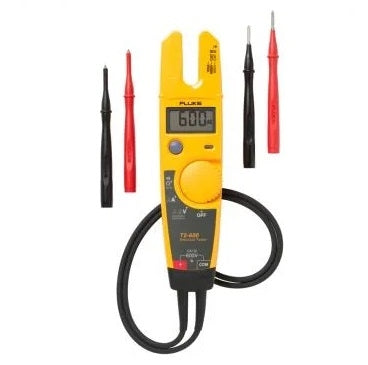

Product overview: Fluke T5-600 Electrical Tester
The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.
"This meter is perfect for my use as I do HVAC and Electrical work, and this will give me what I need for troubleshooting and performance of equipment." - Paul
Measure current up to 100 A without breaking the circuit with OpenJaw™ design
The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:
Withstand a 10 ft. (3 m) drop
Conserve battery life with auto-off mode
Fit in one hand with handy probe storage in the back of the holster
Accept Fluke accessory test clips with the test leads
Meter automatically selects AC or DC voltage for tests up to 600 V
Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.
Key features
Measure current up to 100 A without breaking the circuit
Meter automatically selects AC or DC voltage, up to 600 V
Resistance measurements up to 1000 Ω plus continuity test
Work in tight spaces with detachable SlimReach™ probe tips
The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.
"This meter is perfect for my use as I do HVAC and Electrical work, and this will give me what I need for troubleshooting and performance of equipment." - Paul
Measure current up to 100 A without breaking the circuit with OpenJaw™ design
The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:
Withstand a 10 ft. (3 m) drop
Conserve battery life with auto-off mode
Fit in one hand with handy probe storage in the back of the holster
Accept Fluke accessory test clips with the test leads
Meter automatically selects AC or DC voltage for tests up to 600 V
Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.
Key features
Measure current up to 100 A without breaking the circuit
Meter automatically selects AC or DC voltage, up to 600 V
Resistance measurements up to 1000 Ω plus continuity test
Work in tight spaces with detachable SlimReach™ probe tips
Technical Info
(Adobe Reader required to read datasheet) Overvoltage category : CAT III 600 V ac/dc (EN61010-1)
Safety Conformance : All inputs of the T5-600 are protected to EN61010-1 CAT III 600V.
Agency Approvals : UL, CSA, and VDE
Specifications Jaw opening : 12.9 mm (0.5 in)
Max wire size : 1/0 THHN
Cable Current range ac rms : 0 to 100.0 A
Accuracy ac current (50/60 Hz) : 3 % ± 3 counts
AC Response : Averaging
Operating Temperature : -10°C to 50°C
Storage Temperature : -30°C to 60°C
Battery type : 2 x AA
Battery Life : 200 hour zinc chloride, 400 hour alkaline
Size : 30.5 mm x 51 mm x 203 mm
Weight : 300g
Warranty : 2 years
For any questions on the warranty, please contact Fluke's service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
