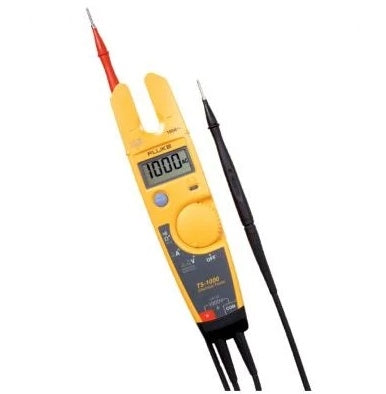

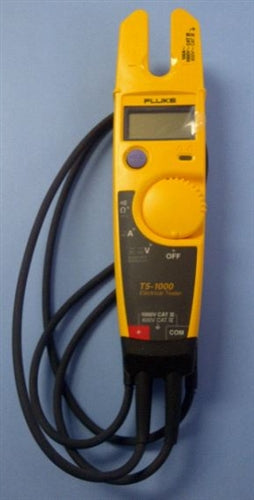

Fluke T5-1000 Voltage, Continuity and Current Tester
Fluke T5-1000 Voltage, Continuity and Current Tester
Call to Order. Calgary: (403) 243-7211 / Saskatoon: (306) 249-5144
SKU: B&E Part Number: T5-1000
Regular price
$258.29 CAD /Each
Regular price
/Each
Sale price
$258.29 CAD
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 2
Status: In Stock
B&E Calgary: 1
B&E Saskatoon: 2
Status: In Stock
Quantity
Couldn't load pickup availability
Product Description
Product overview: Fluke T5-1000 Voltage, Continuity and Current Tester
Measure current up to 100 A without breaking the circuit with OpenJawâ„¢ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current-all with one compact tool.
How to use the T5-1000
Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V.

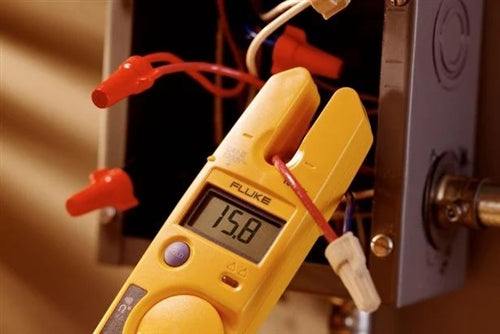

Plus, the OpenJawâ„¢ design allows for fast and easy current measurements without needing to make metallic contact, just slide a wire into the open fork. The continuity beeper offers a quick go/no-go tests, resistance measurements to 1000 Ω.
The electrical tester comes with detachable Slim Reach probe tips so you can easily work in tight spaces. Or hand free work when you use the test lead holder to make the meter an "extended handle" for the probe.
Key safety features
An integrated protection circuit allows the tester to stay connected to a voltage source longer than a solenoid tester. The T5-1000 Electrical Tester also boasts:
A CAT III 1000V, CAT IV 600 V rating
Withstands a 10 ft. (3 m) drop.
The T5-1000 has and Auto-off mode to conserve battery life. The unit fits into an optional holster that attaches to a belt and neatly stows test leads.
Fluke T5-1000 vs T6-1000
The T5-1000 uses the OpenJawâ„¢ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 (https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t6-1000) is designed to use FieldSenseâ„¢ technology to display both current and voltage simultaneously.
Key features
OpenJawâ„¢ design: measure current without breaking the circuit
Tester automatically selects AC or DC voltage, up to 1000 V
Work in tight spaces with detachable Slim Reach probe tips
Measure current up to 100 A without breaking the circuit with OpenJawâ„¢ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current-all with one compact tool.
How to use the T5-1000
Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V.
Plus, the OpenJawâ„¢ design allows for fast and easy current measurements without needing to make metallic contact, just slide a wire into the open fork. The continuity beeper offers a quick go/no-go tests, resistance measurements to 1000 Ω.
The electrical tester comes with detachable Slim Reach probe tips so you can easily work in tight spaces. Or hand free work when you use the test lead holder to make the meter an "extended handle" for the probe.
Key safety features
An integrated protection circuit allows the tester to stay connected to a voltage source longer than a solenoid tester. The T5-1000 Electrical Tester also boasts:
A CAT III 1000V, CAT IV 600 V rating
Withstands a 10 ft. (3 m) drop.
The T5-1000 has and Auto-off mode to conserve battery life. The unit fits into an optional holster that attaches to a belt and neatly stows test leads.
Fluke T5-1000 vs T6-1000
The T5-1000 uses the OpenJawâ„¢ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 (https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t6-1000) is designed to use FieldSenseâ„¢ technology to display both current and voltage simultaneously.
Key features
OpenJawâ„¢ design: measure current without breaking the circuit
Tester automatically selects AC or DC voltage, up to 1000 V
Work in tight spaces with detachable Slim Reach probe tips
Technical Info
(Adobe Reader required to read datasheet) Overvoltage category : CAT IV 1000V ac/dc, CAT III 600V ac/dc
Safety Conformance : All inputs of the T5-1000 to EN61010-1 1000V CAT III rating. UL, CSA and VDE listed.
Agency Approvals : UL, CSA, and VDE
Specifications Jaw opening : 12.9 mm (0.5 in)
Max wire size : 1/0 THHN
Cable Current range ac rms : 0 to 100.0 A
Accuracy ac current (50/60 Hz) : 3 % ± 3 counts
AC Response : Averaging
Operating Temperature : -10°C to 50°C
Storage Temperature : -30°C to 60°C
Battery type : 2 AA
Battery Life : 200 hour zinc chloride, 400 hour alkaline
Size : 30.5mm x 51mm x 203 mm
Weight : 300g
Warranty : 2 years
For any questions on the warranty, please contact Fluke's service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
