Fluke I400 AC Current Clamp Meter

Fluke I400 AC Current Clamp Meter

Call to Order. Calgary: (403) 243-7211 / Saskatoon: (306) 249-5144

B&E Part Number:  I400

$278.20 CAD /Each
/Each $278.20 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 1

Status: In Stock
Sold and Shipped to Canadian Customers Only
View full details

Product Description

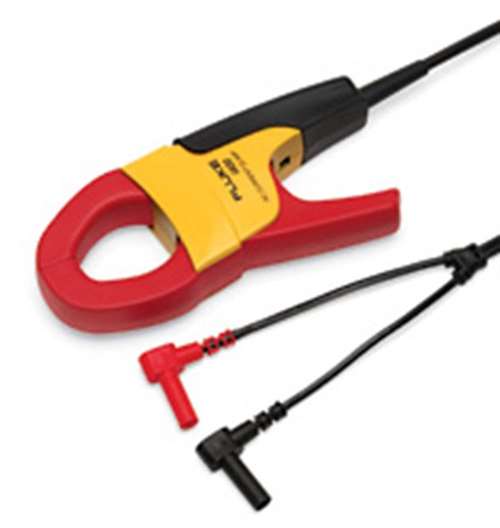

i400 AC Current Clamp CAT IV AC current clamp for DMM's
Fluke Current clamps are the ideal tools to extend the functionality of Fluke tools. The i400 is a single range 400 A ac current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.

Features

Companion to your DMM to measure up to 400 A AC (mA input required for measurement)
1mA/Amp output guarantees easy reading on you meter
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a very compact shape

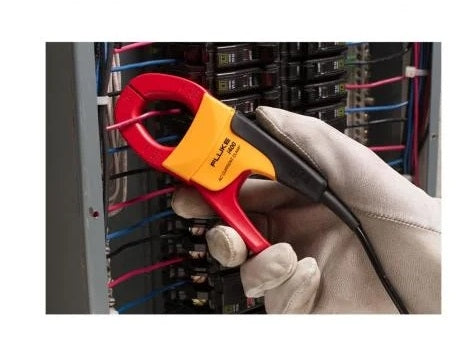

Take accurate current readings without breaking the circuit
Soft non-slippery over mold handle prevents from accidental touching live wiring

Technical Info


Safety Specifications Safety: CAT IV 600 V, CAT III, 1000 V
Maximum voltage : 1000 V AC rms from earth to ground
Output level(s) : 1 mA / A
Useable frequency : 5 Hz - 20 kHz

Maximum conductor size (busbar) : 750 MCM
Maximum wire diameter : 32 mm / 1.25 inches

Specifications
Nominal current range : 400A
Continuous current range : 1 A - 400 A
Lowest measurable current : 1 A

Warranty : 1 year
For any questions on the warranty, please contact Fluke's service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
