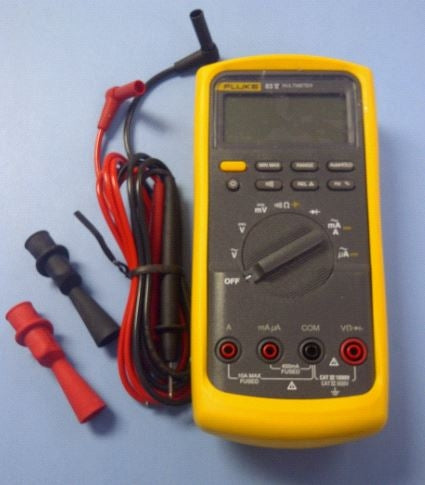

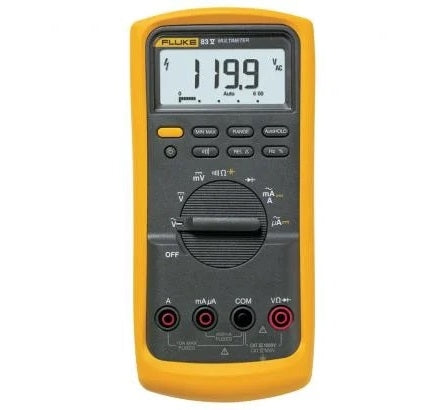

Fluke 83V Average Responding Industrial Multimeter

Average / Non True RMS multimeter
The most trusted industrial multimeter in the business. From the control room to the plant floor, the Fluke 80 Series family of digital multimeters has earned its reputation as the digital multimeter industrial technicians trust. When productivity is on the line, the Fluke 80 Series delivers the accuracy and advanced troubleshooting capabilities you need to solve problems fast. Use the peak capture function to detect intermittent problems and transients as fast as 250 micro seconds (µs). And work with confidence. The Input Alert function gives you an audible warning against wrong use of input jacks Fluke 80 Series multimeters are independently tested for use in CAT IV 600V/CAT III 1000V environments. Designed and manufactured in the U.S.A, this item is backed by Fluke's limited lifetime warranty.

Features :

• Large digit display with bright, two-level backlight makes the 80- Series V significantly easier to read than older models
• Features 6000 counts, 3-3/4 digits
• The meter can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
• Measure up to 1000 V ac and dc Measure up to 10 A, 20 A for up to 30 seconds
• Frequency to 200 kHz and % duty cycle Resistance, continuity and diode test 10,000µF capacitance range for components and motor caps
• Min/Max-Average recording with Min/Max Alert to capture variations automatically
• Peak capture to record transients as fast as 250 µs
• Relative mode to remove test lead interference from low ohms measurements
• Auto and manual ranging for maximum flexibility Touch Hold to capture stable readings avoiding noisy signals
• Large display digits and two-level bright white backlight for increased visibility
• Analog bargraph for fast changing or unstable signals Input Alert provides audible warning against wrong use of input jacks
• Improved selectable sleep mode for long battery life Access door for fast battery changes without breaking the calibration seal "Classic" design with new removable holster with built in test lead and probe storage
• Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks

Meter functions : AC and DC voltage, DC mV, ohms, continuity, diode test, AC mA and amps, AC uA
Special functions : capacitance, DC mA and amps, DC uA, min/max, auto/manual range, auto hold, relative, Hz, %, backlight

(Adobe Reader required to read datasheet)

Fuse selection guide


Electrical safety All inputs are protected to the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V and CAT III, 1000 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

Overvoltage category : EN 61010-1 to 1000 V CAT III, 600V CAT IV
Shock : 1 Meter drop per IEC 61010-1:2001
Vibration : Per MIL-PRF-28800 for a Class 2 instrument
Agency Approvals : UL, CSA, TÃœV, VDE listed

Digital display : 6000 counts updates 4/sec
Analog : 32 segments, updates 40/sec.

Operating Temperature : -20°C to +55°C
Storage Temperature : -40°C to +60°C
Battery: 9v
Battery life (alkaline) : ~400 hours typical, without backlight

Size : 201mm x 98mm x 52 mm (with holster)
Weight : 355 g
Weight With Holster and Flex-Stand : 624 g

Warranty : Limited lifetime warranty
For any questions on the warranty, please contact Fluke's service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
