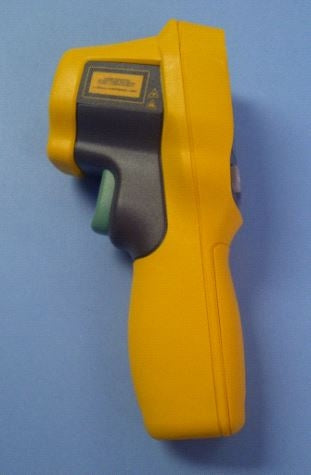

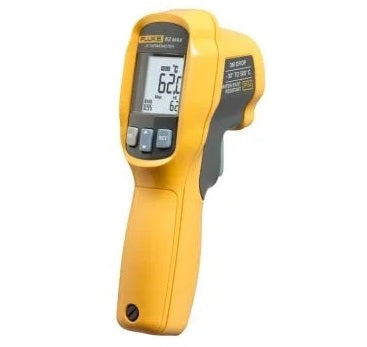

Fluke 62 Max Mini Infrared Thermometer

Product overview: 62 MAX Mini Infrared Thermometer

Fluke 62 Max Infrared Thermometer delivers single-laser targeting accuracy

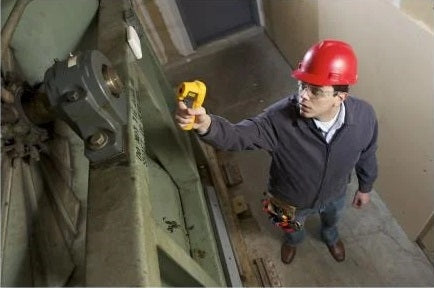

The Fluke 62 MAX Infrared thermometer delivers many of the features of the Fluke 62 MAX+, but features a single laser and 10:1 distance to spot ratio. You can use the Fluke 62 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents. It is small in size and extremely easy to use. The single laser helps you pinpoint the target for more accurate readings and makes it easier to measure temperatures in hard to reach areas. With its IP54 rating for dust and water resistance you can rely the Fluke 62 MAX to deliver accurate, repeatable temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites. And it's rugged enough to take a 3-meter drop so no worries even if you work from a ladder.

Other useful features:

High and low alarms for rapid detection of temperatures outside the limits
Powered by a single, standard AA battery.
Comes with a three-year warranty -30-
Withstands a 3 m (9.8 ft.) drop
Offers small, lightweight form factor to clip comfortably to your tool belt or belt loop, or easily fit in your tool box
Features a large, backlit display to make data easier to read, even in dark areas.
Displays Min/Max/Avg/Dif: the minimum, maximum or average temperature, or the difference between two measurements

Key features

Highly accurate infrared thermometer for measuring temperatures from -30°C to 500°C (-22°F to 932°F) accurate to +1.5°C or +1.5% of reading (whichever is greater)
Provides a 10:1 Distance to spot ratio
Offers single laser targeting for accurate and repeatable measurements
Features IP54 rating against dust and moisture

(Adobe Reader required to read datasheet)

Vibration and Shock : IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms EMC : EN 61326-1:2006 EN 61326-2:2006
Standards and Agency Approval Compliance : EN/IEC 61010-1: 2001 Laser Safety : FDA and EN 60825-1 Class II

Temperature Range : -30°C to 500°C / (-22°F to 932°F)
Accuracy ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0
Response Time (95%) : <500 ms (95% of reading)
Spectral Response : 8 to 14 microns Emissivity : 0.10 to 1.00
Optical Resolution : 10:1 (calculated at 90% energy)
Display Resolution : 0.1°C (0.2°F)
Repeatability of Readings : ±0.8% of reading or <±1.0°C (2°F), whichever is greater

Operating Temperature : 0°C to 50°C (32°F to 122°F)
Storage Temperature : -20°C to 60°C / (-4°F to 140°F), (without battery)
Power : AA battery
Battery Life : 10 hours with laser and backlight on

Physical Specifications
Size : (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
Weight : 255 g (8.99 oz)

IP Rating : IP 54 per IEC 60529
Drop Test : 3 meters

Warranty : 3 year (conditional)
For any questions on the warranty, please contact Fluke's service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
