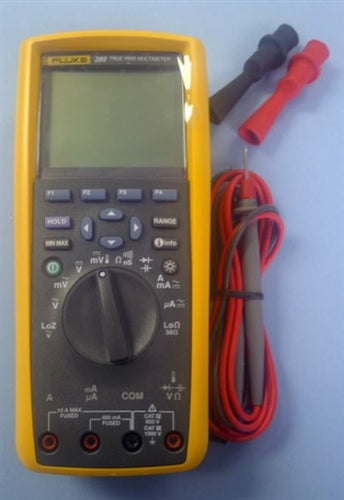

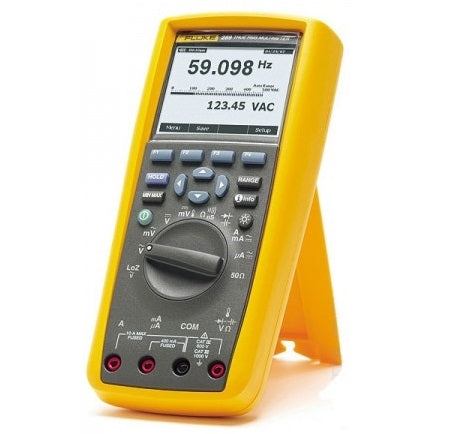

Fluke 289 True RMS Data Logging Multimeter

Fluke 289 True-rms Industrial Logging Multimeter with TrendCapture Find Little Problems Before They Become Big Ones.

The industrial meter for demanding users. New diagnostic functionality for maximizing productivity in the plant. The new 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems. Maximize productivity with the Fluke 289 and FlukeView forms software (optional accessory). With built-in data logger and TrendCapture capability, the 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring applications in FVF software. Turn your data into meaningful graphs and tables for a professional report. Maximum voltage between any terminal and earth ground : 1000V

Features:
NEW Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time.
NEW Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board Trend Capture, you can graphically view logged readings without a PC. (Software and interface cable optional).
NEW Log multiple sessions or log data continuously for over 200 hours. This is useful for characterizing the performance of a design or for unattended monitoring.
NEW I-info button on board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i button.
NEW Lo-Z Volts. Low impedance voltage function prevents false readings due to “ghost voltage. It is also the recommended mode when testing for absence or presence of live power.
NEW – Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment. 50 ohm range – useful for measuring and comparing differences in motor winding resistance, low ohm measurements, or other contact resistance. Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.
NEW – Saved measurements allow you to name and recall measurements made in the field Real Time Clock – for automatic time stamping of saved readings NEW - Field upgradeable and expandable meter lets you stsay current as new capabilities are added
NEW - Multi-lingual interface Min/Max/Average with Time Stamp to record signal fluctuations Soft keys, scroll buttons and easy navigation control access to secondary functions.

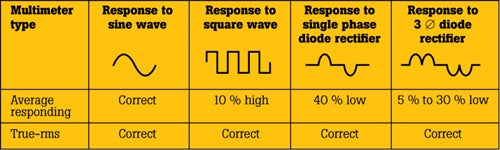

Create custom displays too. 0.025% Basic DC accuracy 100 kHz ac bandwidth True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.
Measure up to 10A (20 A for 30 seconds; 10A continuous) 100 mF capacitance range
Temperature function
Relative mode to remove test lead resistance from low ohms or capacitance measurements
Peak capture to record transients as fast as 250 μs
Premium test leads and alligator clips included Optical USB PC communication interface allows for easy PC download to document logged data with FVF software (not included).
Optional FlukeView forms enables you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.

(Adobe Reader required to read datasheet)

Fuse selection guide


True-RMS AC bandwidth : 100 kHz
Isolated Optical Interface
Interval/Event Logging
Logging Memory : Up to 10,000 readings

Fuse Protection for mA or μA inputs : 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse
Fuse Protection for A input : 11 A, 1000 V FAST Fuse

Safety Specifications : CAT III 1000 V / CAT IV 600 V safety rated Agency Approvals : CSA, UL, TÜV, CE

Digital display : Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time

Operating Temperature : -20 °C to +55 °C
Storage Temperature : -40 °C to +60 °C
Battery type : 6 AA alkaline batteries, NEDA 15A IEC LR6
Battery Life : 100 minimum, 200 hours in logging mode

Mechanical & General Specifications Maximum voltage between any terminal and earth ground : 1000V
Size : (HxWxL 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
Weight : 870.9 g (28 oz)

Warranty : Limited lifetime
For any questions on the warranty, please contact Fluke’s service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
